What is Drawings and Drafting for Mass Timber Architecture?

Drawings and drafting for mass timber architecture involve creating detailed plans and diagrams for buildings made mainly from large timber elements. This includes architectural, structural, and detail drawings, along with assembly sequence plans and material specifications. These drawings ensure precise construction and compliance with codes. The process involves collaboration between architects, engineers, and contractors, using CAD software and BIM tools for accuracy.

Mass Timber Architecture uses large engineered wood elements like cross-laminated timber and glulam for primary building structures. It's eco-friendly, efficient, and offers strong performance. Prefabrication, sustainability, and aesthetic appeal are key features, making it a popular choice for various building types.

Drawings and drafting are crucial in Mass Timber Architecture:

Precision: They detail complex connections, reducing errors.

Assembly Guide: Drawings aid on-site assembly, minimizing mistakes.

Structural Integrity: They ensure compliance with safety standards.

Code Adherence: Drawings help meet mass timber regulations.

Collaboration: They aid communication among stakeholders.

Efficiency: Accurate drawings save time and resources.

Visualization: They help stakeholders envision the design.

Documentation: Drawings serve as future references for maintenance and expansion.

Mass timber construction is on the rise due to its many benefits:

Sustainability: It uses renewable resources and reduces carbon emissions.

Quick Building: Prefab components speed up construction.

Design Freedom: Its strength allows for innovative designs.

Fire Resistant: Surface charring enhances fire resistance.

Healthy and Beautiful: Wood interiors improve well-being and aesthetics.

Strong and Safe: Engineered wood performs well in seismic conditions.

Less Disruption: Prefab reduces on-site disturbances.

Waste Reduction: It generates less waste.

Supports Economies: Boosts forestry industries and rural economies.

Explanation of what Mass Timber Architecture Entails.

Mass timber architecture involves designing and constructing buildings using large engineered wood elements as the primary structural material. Instead of traditional materials like steel or concrete, mass timber architecture relies on products like cross-laminated timber (CLT), glulam (glue-laminated timber), and laminated veneer lumber (LVL).

In this approach, these wood elements are precision-engineered and manufactured to specific tolerances off-site. The components are then transported to the construction site for assembly.

Mass timber architecture encompasses various building types, from residential and commercial structures to institutional and educational buildings. The construction process involves precise design, fabrication, and assembly of the engineered wood elements to create durable, sustainable, and visually appealing structures that exemplify the potential of modern wood-based construction techniques.

Overview of the types of mass timber used in construction.

Mass timber is a category of engineered wood products used in construction. Here's an overview of the main types:

Cross-Laminated Timber (CLT): CLT consists of layers of wood boards stacked at right angles and bonded together with adhesives. It's strong, stable, and suitable for walls, floors, and roofs.

Glue-Laminated Timber (Glulam): Glulam is made by bonding layers of timber together with strong adhesives, creating large beams or columns. It offers versatility, strength, and aesthetic appeal.

Laminated Veneer Lumber (LVL): LVL is made from thin layers of wood veneers glued together. It's commonly used for beams, headers, and other structural elements.

Nail-Laminated Timber (NLT): NLT involves stacking lumber planks and fastening them with nails or screws. It's often used for floor and roof decks.

Dowel-Laminated Timber (DLT): Similar to NLT, DLT uses hardwood dowels instead of nails or screws for connections. It offers a clean aesthetic and strong structural performance.

Mass Plywood Panels (MPP): MPP is a large-format panel made from thin wood veneers glued together. It's suitable for walls, floors, and roofs.

These mass timber products are engineered to be strong, stable, and fire-resistant. They enable the construction of sustainable, efficient, and visually striking buildings while reducing the carbon footprint compared to traditional construction materials.

The role of drawings in Mass Timber Architecture is crucial for several reasons:

Design Visualization: Drawings translate design concepts into visual representations, allowing stakeholders to understand the intended appearance and layout of the structure.

Communication: Drawings serve as a common language among architects, engineers, contractors, and clients, ensuring everyone shares a clear understanding of the project.

Precision: Detailed drawings provide accurate measurements, dimensions, and connections of mass timber components, minimizing errors during fabrication and assembly.

Assembly Guidance: Drawings offer step-by-step instructions for assembling prefabricated mass timber elements on-site, reducing construction errors and ensuring proper sequencing.

Structural Integrity: Drawings communicate load distribution, connections, and bracing, ensuring the structural stability and safety of the building. Check our blog on the Structural Steel Detailing Services.

Code Compliance: Drawings help architects adhere to mass timber-specific codes and regulations, ensuring the building meets safety and environmental standards.

Efficiency: Accurate drawings minimize rework, optimize construction processes, and save time and resources.

Documentation: Drawings serve as a record of the construction process, aiding future maintenance, renovations, and potential expansions.

In essence, drawings in mass timber architecture serve as a comprehensive guide that transforms design ideas into tangible structures, ensuring precision, compliance, collaboration, and successful construction.

How drawings serve as a blueprint for the project.

Drawings serve as a blueprint for a project by providing a comprehensive visual roadmap that guides every aspect of the construction process. Here's how:

Design Visualization: Drawings transform abstract design concepts into tangible representations, helping stakeholders visualize the final structure.

Detailed Information: Drawings include measurements, dimensions, and specifications for various elements, ensuring precise implementation.

Construction Guidance: Drawings show the correct sequence and assembly of components, acting as step-by-step instructions for builders.

Structural Clarity: Drawings depict load-bearing points, connections, and bracing, ensuring the structure's stability and safety.

Materials and Finishes: Drawings specify materials, finishes, and textures, guiding material selection and ensuring design cohesion.

Drafting Techniques in Mass Timber Architecture:

Drafting techniques in Mass Timber Architecture encompass specialized methods for creating detailed and accurate technical drawings that convey the design and construction of buildings using large engineered wood elements. Here are some key techniques:

Orthographic Projections: These show the three main views of an object: top, front, and side. Orthographic drawings are essential for accurately representing mass timber components' dimensions and connections.

Sectional Drawings: Sections cut through the building or components, revealing interior details that may not be visible in external views. This technique helps illustrate how mass timber elements are integrated within the structure.

Detail Drawings: These focus on specific connections, joints, and interfaces between mass timber elements. Detail drawings provide precise information for accurate fabrication and assembly.

Axonometric and Isometric Drawings: These present three-dimensional views of a structure or component, aiding in visualization and understanding of complex geometries.

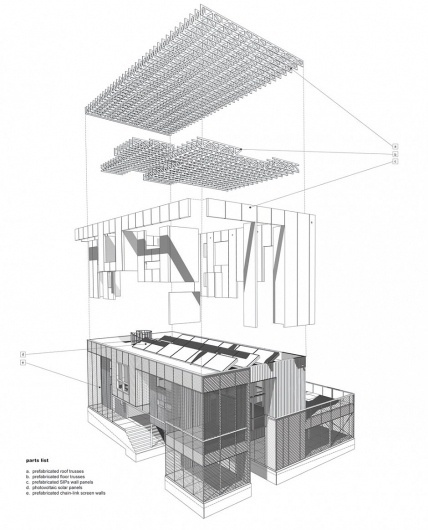

Exploded Views: These drawings disassemble components to showcase their parts and how they fit together. Exploded views help illustrate assembly sequences.

Annotations and Dimensions: Clearly labeling dimensions, materials, tolerances, and other specifications ensures that the information needed for fabrication and construction is accurately conveyed.

Material Indications: Different line styles, hatching, and shading techniques can be used to indicate different materials, helping to distinguish mass timber elements from other building components.

Layering and Lineweights: Organizing drawings with different layers and line weights ensures visual clarity and differentiation between elements.

Digital Modeling and BIM: Utilizing Building Information Modeling (BIM) software enables 3D modeling, clash detection, and the generation of accurate construction documents directly from the model. Get More information about BIM Virtual Design and Construction.

Scaling and Proportion: Ensuring accurate scaling and proportion in drawings is essential for maintaining design accuracy and facilitating construction.

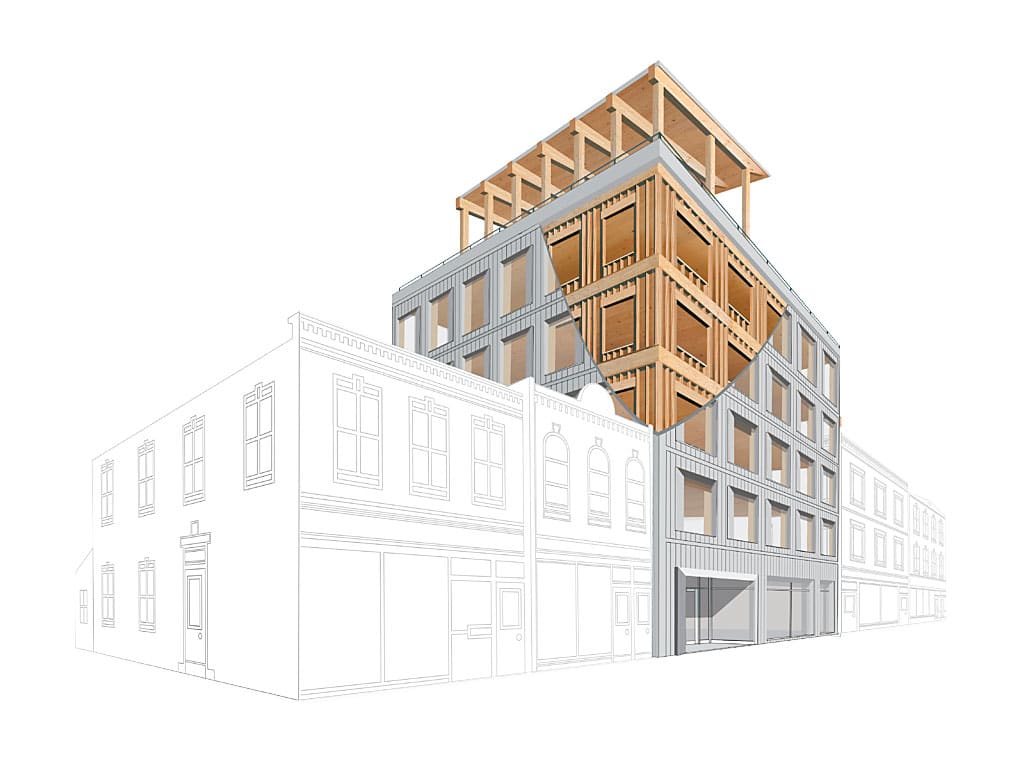

Cross-Sections: These drawings show what the interior of a mass timber component looks like when cut, aiding in understanding its internal structure.

Key Components of Mass Timber Drawings:

Key components of mass timber drawings encompass essential aspects that convey the intricate details of construction. These components include:

Structural Components:

Detailing Columns: Depicting the dimensions, connections, and placement of vertical load-bearing elements.

Beams: Illustrating the dimensions, connections, and locations of horizontal load-bearing elements.

Panels: Showing the layout and connections of cross-laminated timber (CLT) or other panelized mass timber components.

Connections: Describing how different mass timber elements connect and interact, ensuring structural integrity.

Architectural Elements:

Walls: Indicating the locations, thicknesses, and materials of interior and exterior walls.

Openings: Detailing doors, windows, and other openings in walls and panels.

Roofs: Depicting the design and connections of mass timber roof elements, such as trusses or panels.

Facades: Outlining the exterior appearance and cladding of the building.

Integration of Building Systems:

Electrical: Indicating the paths of electrical wiring, outlets, and fixtures within mass timber components.

Plumbing: Showing plumbing lines, pipes, and fixtures integrated into walls, floors, and ceilings.

HVAC (Heating, Ventilation, and Air Conditioning): Depicting ductwork, vents, and other HVAC system components integrated into the mass timber structure.

These components are intricately detailed through various drafting techniques to create comprehensive construction documents. The drawings ensure that the design intent, structural stability, architectural aesthetics, and functional integration of building systems are accurately conveyed to contractors, builders, and other stakeholders. This clarity enhances the construction process, minimizes errors, and contributes to the successful realization of mass timber architectural projects.

Creating Detailed Mass Timber Drawings:

Creating detailed mass timber drawings involves a collaborative process among architects, engineers, and drafters:

Conceptual Design and Planning:

• Architects envision design.
• Engineers ensure structural viability.
• The collaboration aligns with aesthetics and safety.

Schematic Design:

• Architects refine the design.
• Engineers provide structural insights.
• Drafters start detailed drawings.

Design Development:

• Architects and engineers reconcile design and engineering.
• Drafters incorporate details.
• Collaboration ensures cohesiveness.

Detailed Drawing Creation:

• Drafters create precise drawings.
• Architectural and structural elements are detailed.
• Building systems integration is included.

Review and Feedback:

• Architects and engineers review accuracy and compliance.
• Feedback refines drawings.
• Continuous collaboration ensures quality.
• Coordination and Clash Detection:
• Drafters identify clashes and adjust designs.
• Collaboration resolves conflicts.

Finalization and Documentation:

• Revised drawings are finalized.
• Sets include plans, elevations, and details.
• Collaboration leads to comprehensive drawings.
• Throughout, collaboration ensures accurate, cohesive, and high-quality mass timber drawings.

Software and Tools for Mass Timber Drafting:

Software plays a vital role in mass timber drafting, enabling architects, engineers, and drafters to create detailed and accurate drawings. Some commonly used software tools for mass timber drafting include:

AutoCAD:

AutoCAD is a versatile drafting software that allows the precise creation of 2D and 3D drawings.

It is often used for creating detailed plans, elevations, and sections of mass timber components.

AutoCAD's wide range of tools and libraries facilitate the accurate representation of mass timber elements.

Revit:

Revit is Building Information Modeling (BIM) software that offers a holistic approach to drafting and design.

It allows the collaborative creation of detailed 3D models with integrated data, including architectural, structural, and building system elements.

Revit's parametric modeling capabilities enhance accuracy and efficiency in mass timber drafting.

SketchUp:

SketchUp is known for its intuitive 3D modeling capabilities.

It is used for creating conceptual massing models and visualizations of mass timber structures.

SketchUp's user-friendly interface is helpful for quickly exploring design ideas.

Tekla Structures:

Tekla Structures is specifically designed for structural detailing and BIM workflows.

It is commonly used for detailing complex mass timber connections and assemblies.

Tekla's tools aid in creating accurate fabrication and construction drawings.

Rhino with Grasshopper:

Rhino is a versatile 3D modeling software.

Grasshopper, a visual programming language plugin for Rhino, enhances parametric modeling capabilities, allowing complex mass timber forms to be created.

Vectorworks:

Vectorworks combines 2D drafting and 3D modeling capabilities.

It offers BIM tools for creating detailed mass timber drawings with integrated information.

These software tools streamline the mass timber drafting process, enhancing accuracy, collaboration, and efficiency. They facilitate the creation of comprehensive drawings that communicate design intent, structural details, and building system integration, contributing to successful mass timber architecture projects.

Get More information about Structural Design And Drafting.

Challenges & Solutions in Mass Timber Drawings:

Challenges:

• Complex Connections: Intricate joinery requires precise detailing.
• Integration: Coordinating with systems like HVAC poses challenges.
• Code Compliance: Meeting mass timber codes can be complex.
• Design Changes: Modifications demand swift adjustments.
• Clash Detection: Identifying conflicts is time-intensive.

Solutions:

• Specialized Software: Use tailored drafting tools for accurate detailing.
• Collaboration: Coordinate early for seamless integration.
• Expert Drafters: Hire those skilled in codes and regulations.
• Iterative Approach: Adapt to design changes while maintaining accuracy.
• BIM Tools: Employ clash detection and real-time collaboration.

Case Studies: Successful Mass Timber Projects:

The T3 Building, Minneapolis, USA:

A seven-story office building made entirely of mass timber.

Drawings and drafting played a pivotal role in detailing connections, ensuring precision during assembly.

Accurate drawings allowed for efficient prefabrication, reducing on-site construction time.

The Brock Commons Tallwood House, Vancouver, Canada:

An 18-story residential tower constructed with mass timber components.

Detailed drawings guided the manufacturing of cross-laminated timber (CLT) panels, facilitating quick assembly.

Precise drafting enabled the project to achieve impressive height and sustainability goals.

In the realm of mass timber architecture, drawings and drafting emerge as indispensable tools that translate innovative visions into tangible reality. Their critical role lies in precision, collaboration, and innovation, forming the foundation of successful projects.

Precision in drawings ensures that the intricate connections, load-bearing elements, and architectural features of mass timber structures are accurately conveyed. Every dimension and detail matters, as even a minor error, can have significant consequences during construction.

Collaboration among architects, engineers, drafters, and various stakeholders is paramount. Drawings serve as a universal language, facilitating effective communication and understanding across disciplines. The seamless integration of architectural design, structural integrity, and building systems relies on collaborative efforts guided by meticulous drafting.

Innovation is at the heart of mass timber architecture, and drawings play a pivotal role in showcasing this innovation. They bring to life daring designs, unique forms, and sustainable concepts that push the boundaries of traditional construction methods. Drawings enable experimentation, visualization, and adaptation, fostering the evolution of mass timber as a cutting-edge architectural approach.

In conclusion, drawings and drafting are the backbone of mass timber architecture. Their precision, collaboration-enabling nature, and role in fostering innovation contribute to the successful execution of projects that embrace the potential of wood-based construction in the modern world. As mass timber continues to reshape the architectural landscape, the art of drafting remains an essential conduit for transforming visionary concepts into awe-inspiring built environments.

Thank you for reading this blog article, stay connected for our more BIM services blogs.

Check our main blog article on the - What is Mass Timber Architecture?
