What is Vacuum Casting: Definition, Process, and Advantages

By pulling liquified material into molds via vacuum pressure, vacuum casting delivers refined prototypes, representations, and low-volume pieces. Unlike injection molding, which positively thrusts the material, vacuum casting synergizes vacuum suction to draw feedstock deeply into every mold embrasure, helping reproduce tight specifications and blemish-free outputs absent air pockets. The process offers several advantages over other techniques. It is commonly used for applications requiring visual prototypes, market testing, concept proofs, and limited production runs.

What Are the Advantages of Vacuum Casting?

There are several key advantages to using vacuum casting over other prototyping methods. These include:

1. Cost-Effectiveness

Silicone molds for vacuum casting prototyping are cheaper to produce than metallic injection molding tooling. This reduces overall production costs, making vacuum casting cost-effective for prototypes and low-volume parts.

2. Quality Surface Finish

Vacuum casting achieves a smooth finish by evacuating air from the mold before curing. Bubbles and imperfections are eliminated, enabling precise replication of fine details from the original design. The cured parts exhibit injection-molded quality.

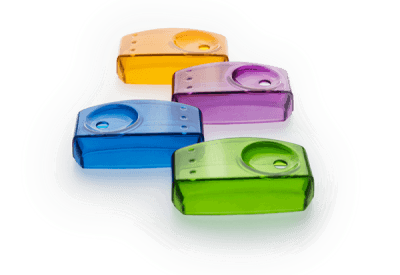

3. Versatility in Color and Material

Vacuum casting provides formulation flexibility through directly added pigments and different casting materials like urethane, epoxy, or silicone rubber. Designers are not limited to a single material, as is the case with other processes. Aesthetic requirements and engineering properties can be optimized.

The Vacuum Casting Process

The vacuum casting process involves three main stages to transform a 3D computer design into a physical part:

1. Master Building

This initial phase requires generating an accurate solid form of the intended part design. Masters can be manufactured either through computer numerical control (CNC) machining of billet material or 3D printing technologies. Both allow for highly complex geometries to be replicated.

2. Mold Making

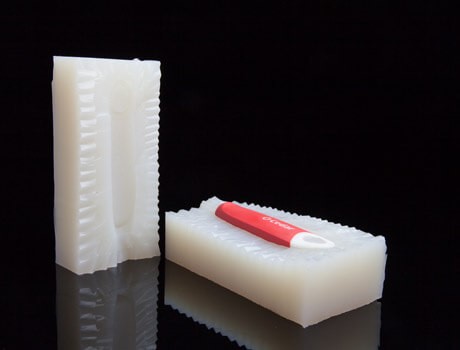

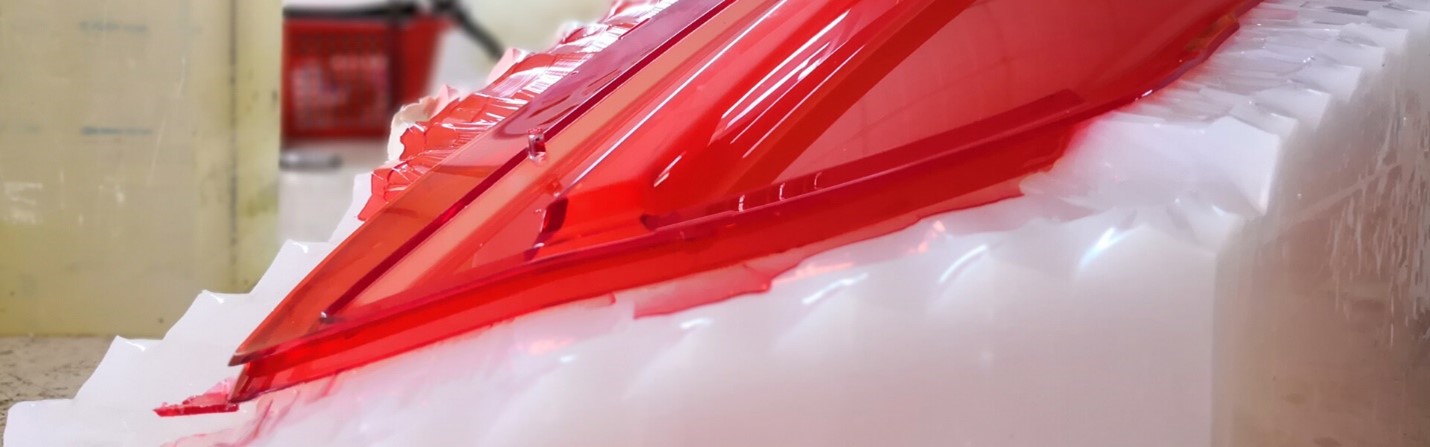

When the master is complete, it is secured within a casting box or enclosure. Liquid silicone rubber is then poured around the master and left to cure, adopting its exact form. After curing, the silicone rubber mold is cut open and the master removed, leaving a hollow cavity matching the part shape.

3. Casting

To produce parts, casting resin is poured into the mold cavity. A vacuum pump draws out air through vents in the mold, preventing bubbles or imperfections. The resin takes the shape of the cavity walls and cures to a hardened state. The new cast part can then be removed for finishing, and the mold can be reused multiple times.

Applications and Technical Specifications

Vacuum casting is suitable for many roles due to its tolerances and repeatability. Both industrial applications and specifications are worth exploring.

Applications

Vacuum casting excels at visual prototypes, concept validation, market testing, trade show exhibits, and short production runs. It effectively replicates designs for evaluation, demonstration, and small-scale manufacturing.

Technical Specifications

Parts are confined to a maximum 10-liter volume. Wall thicknesses may further reduce this. Molds yield 25 quality castings on average. Lead times are favorable, often under two weeks for batches under 20 units. Precise reproductions within +/-0.3mm are standard, with tighter tolerances possible depending on geometry. Vacuum chambers accommodate most parts up to nearly 1 cubic meter. Custom requirements may facilitate even larger scales.

Conclusion

In summary, vacuum casting is a cost-effective method for prototyping and production that is versatile across a wide range of applications. By removing air from the molds, it produces parts with minimal defects, achieving quality levels comparable to those of injection molding. Although vacuum casting typically handles smaller batch sizes than injection molding, it offers significant advantages for complex geometries, enhanced surface finishes, and customizable coloring options. Manufacturers such as HPrapid are known for their reliable urethane casting services, which efficiently transform 3D designs into high-fidelity castings with precision and attention to detail. Please contact HPrapid to explore its services and capabilities further.
