How to Add Slide-out Menus to Mobile Apps
Xcode Programming for Mobile Apps
“Slide-out navigation consists of a panel that 'slides out' from underneath the left or the right of the main content area, revealing a vertically independent scroll view that serves as the primary navigation for the application.”
When you look at successful mobile applications like Facebook and Twitter, you'll notice they use slide-out menus. It’s a great way to give your application a fresh look and feel, as well as more navigational capabilities.
In this article, Xcode developer Hardi B. Salih shares a step by step process on how to add a slide-out menu to your mobile app.
SWRevealViewController, by John-Lluch, is a well-known library for slide-out menus. I've watched their videos and tutorials and most of them are useful. However, they are difficult to understand. Here, I will share the source code for slide-out menus with Xcode. In the future, I would like to provide more articles as tutorials for new features.
... Hardi B. Salih
# note : You will also be learning how to add and use Objective-C in your Swift application.

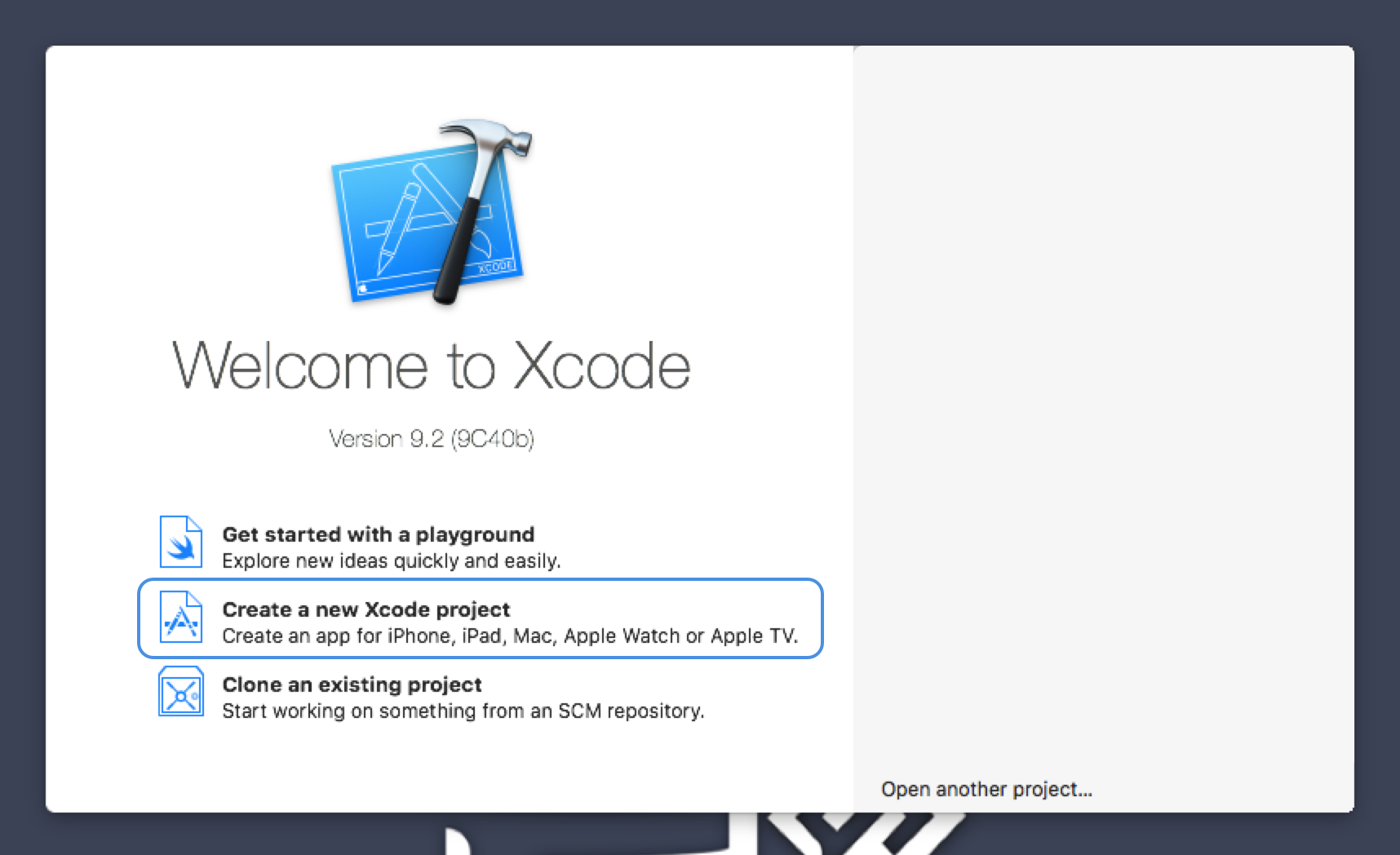

Create a new Xcode project.
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/t1wn3lbn7tk6pmh1n7rc.png)
Create a new Xcode project

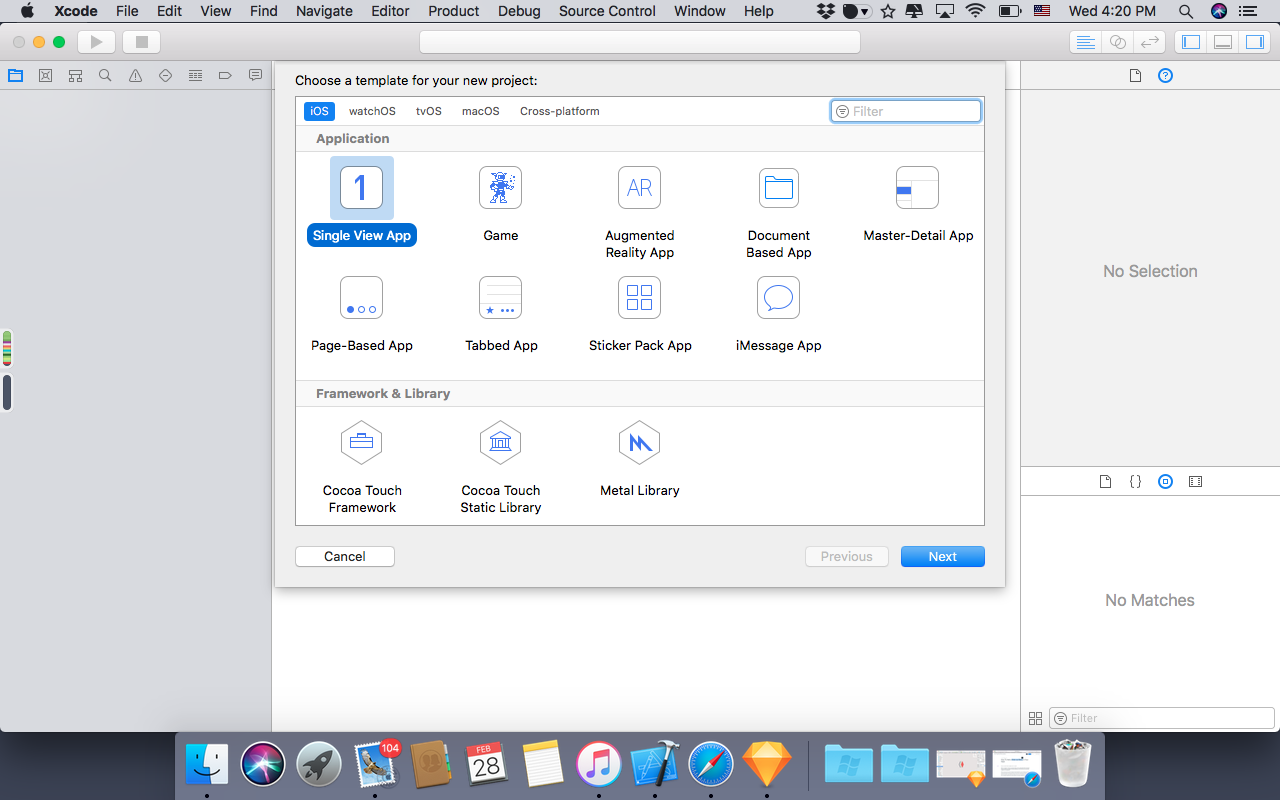

For template, choose Single View App.
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/kipxmj5h9ivn5ig47vww.png)
Product Name
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/axia57becs6p3llbxaaj.png)

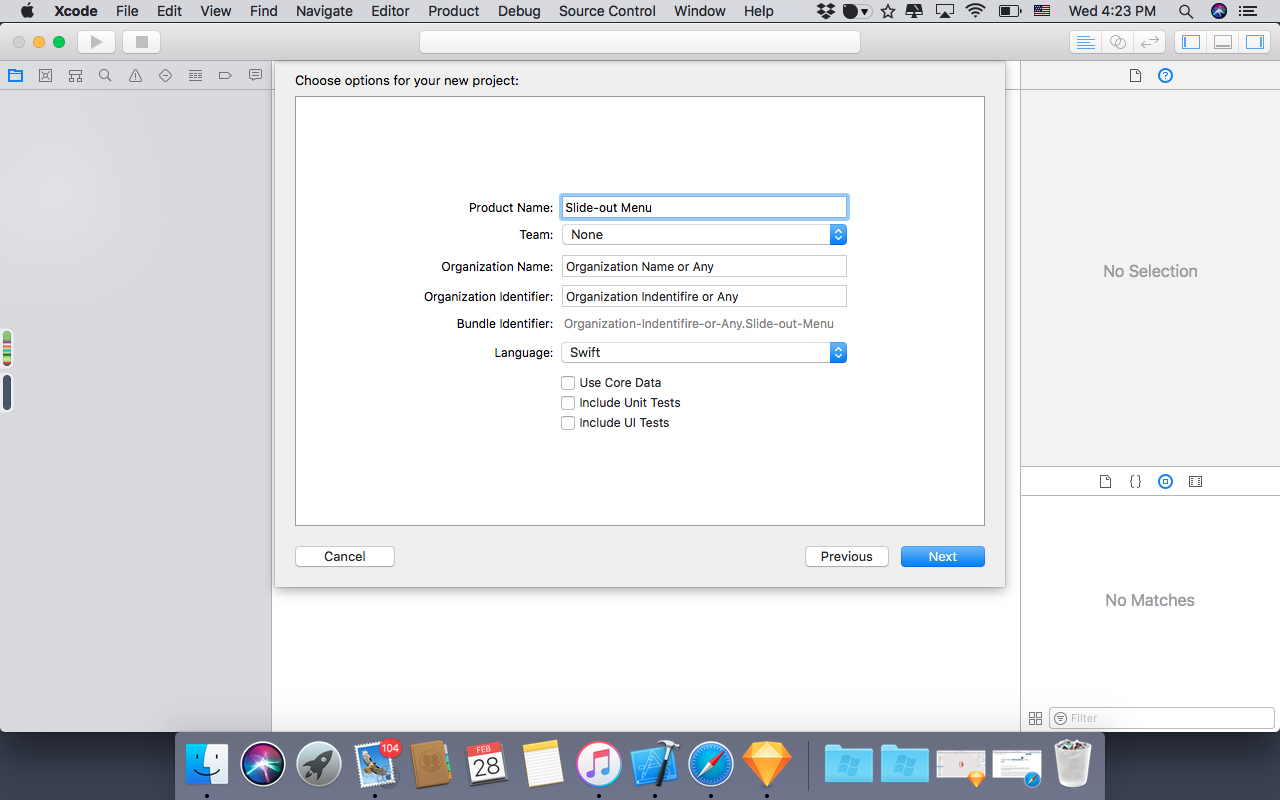

For Product Name, select Slide-out Menu.
Choose your organization name and team and save to your computer.
Download Assets:
Find the source code and assets here:
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/pha1wffhxsgvjexl8ruf.png)

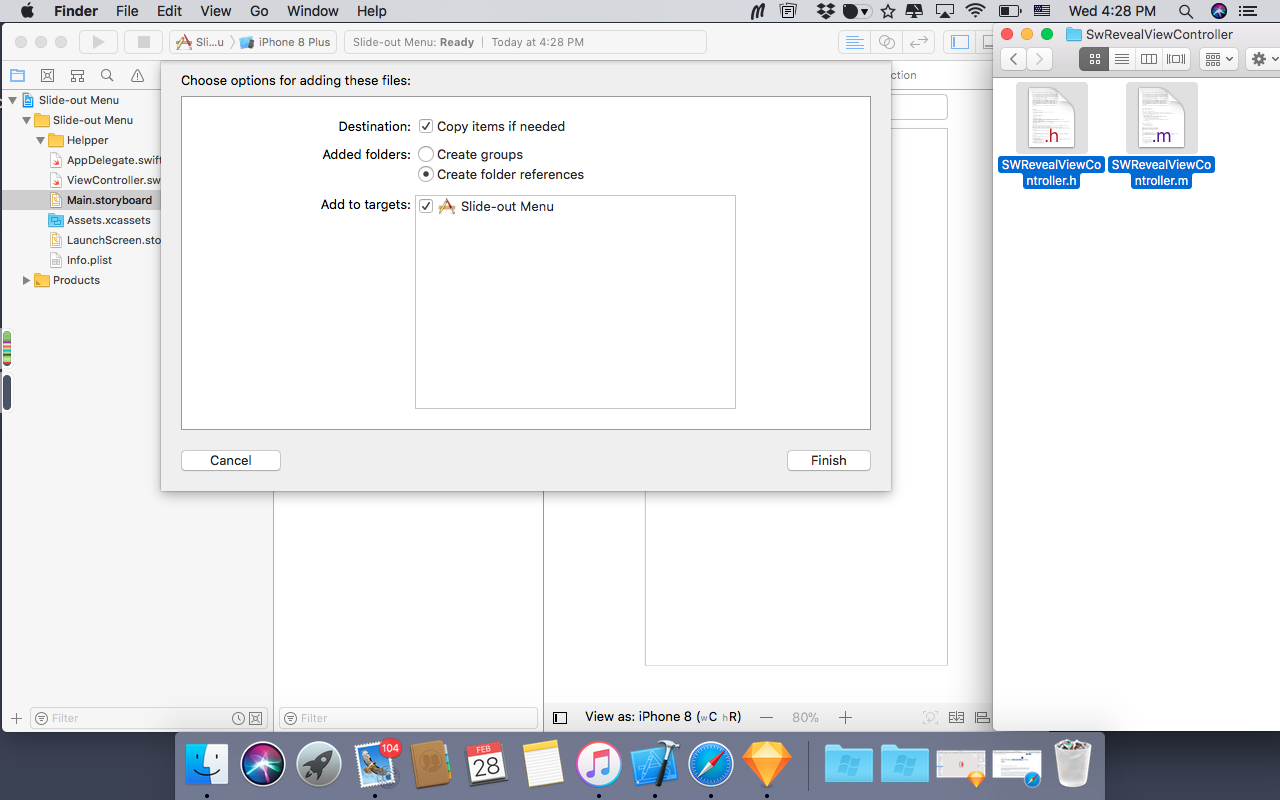

Download assets with SWRevealViewController or get the file from github.
Drag and drop SwrevealViewController.m and SwrevealViewController.h into your project.

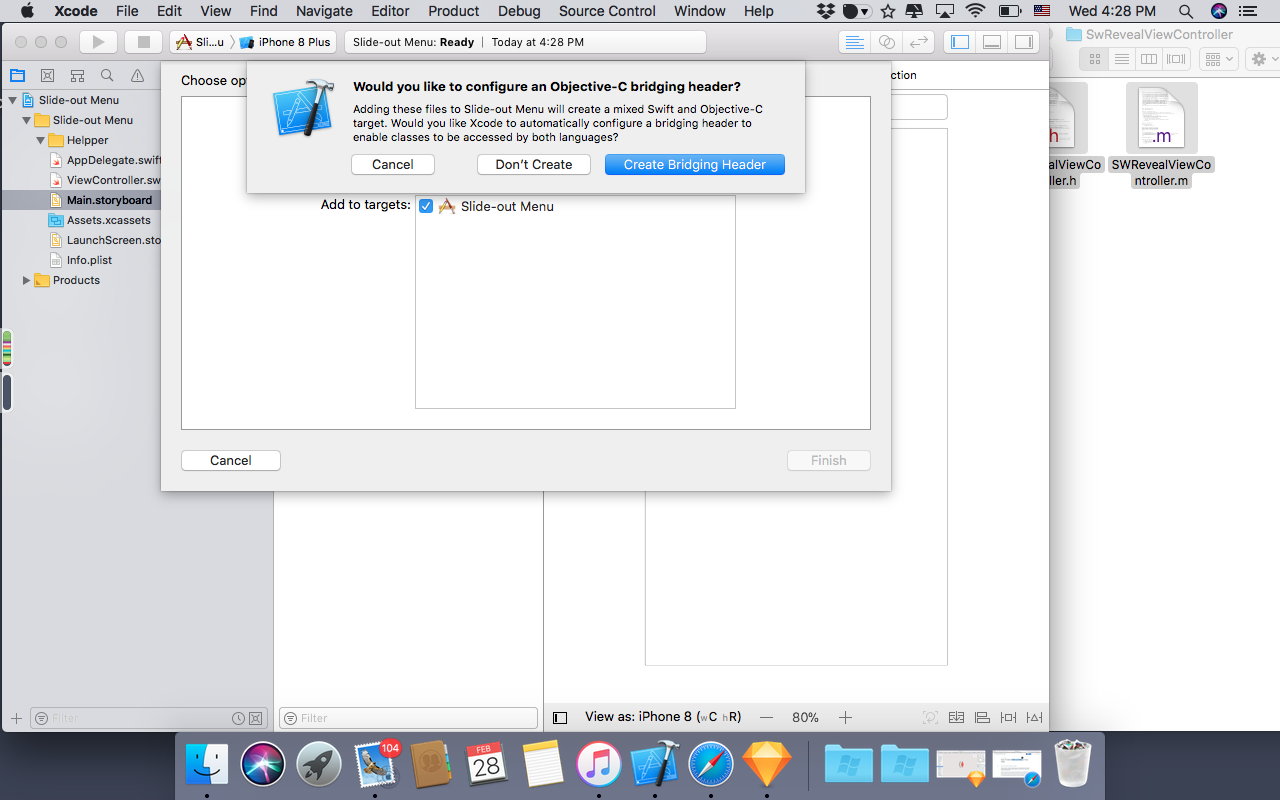

Choose Create Bridging Header
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/mlcz5q72q5ktchazzv3o.png)

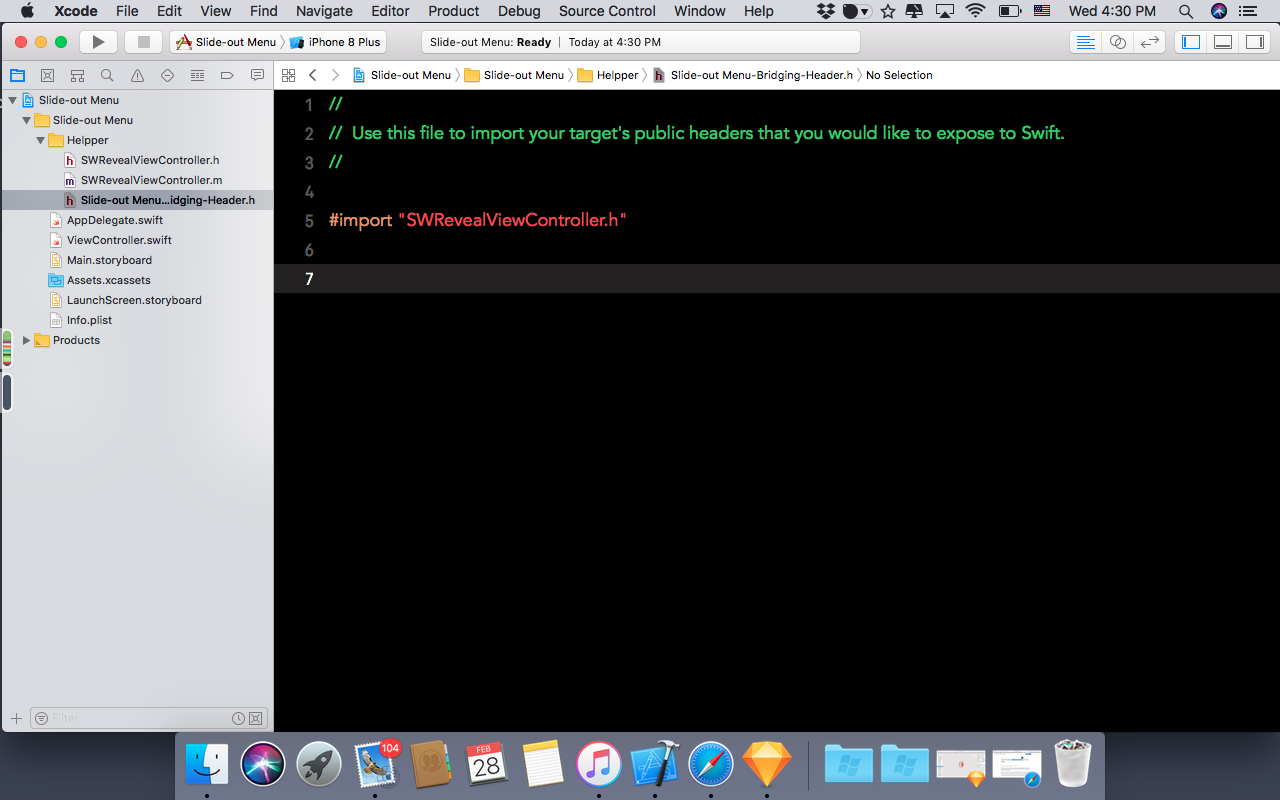

Import...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/fhh0hvynq1oeh3i2ixsk.png)
Import SWRevealViewController by adding this line of code:
#import "SWRevealViewController.h"
You can use the assets we have provided, or use your own Ideas to create the interface for your project….

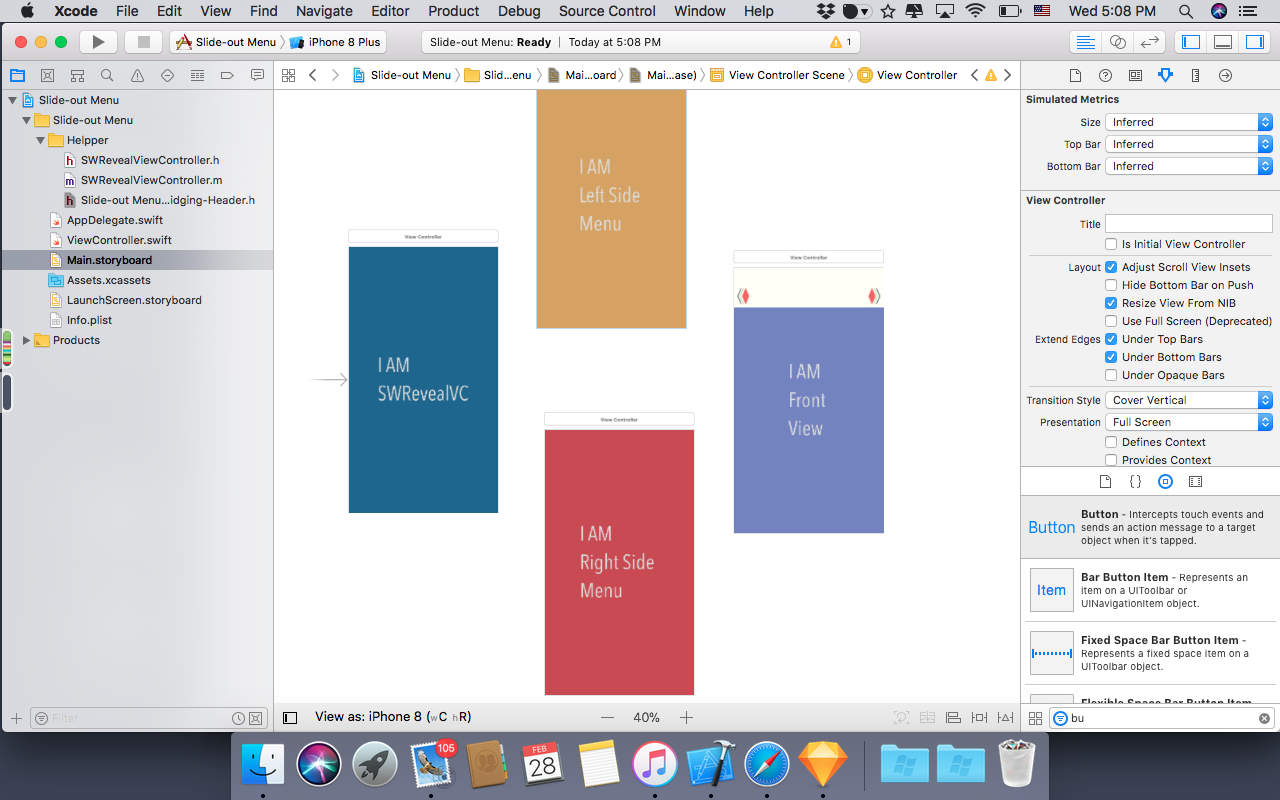

Add ViewController . . .
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/ugokyxzagynxhp5ebjj8.png)
Add ViewController. In this case, it is Right and Left. From ViewController, connect them inside (Main.storyboard ).

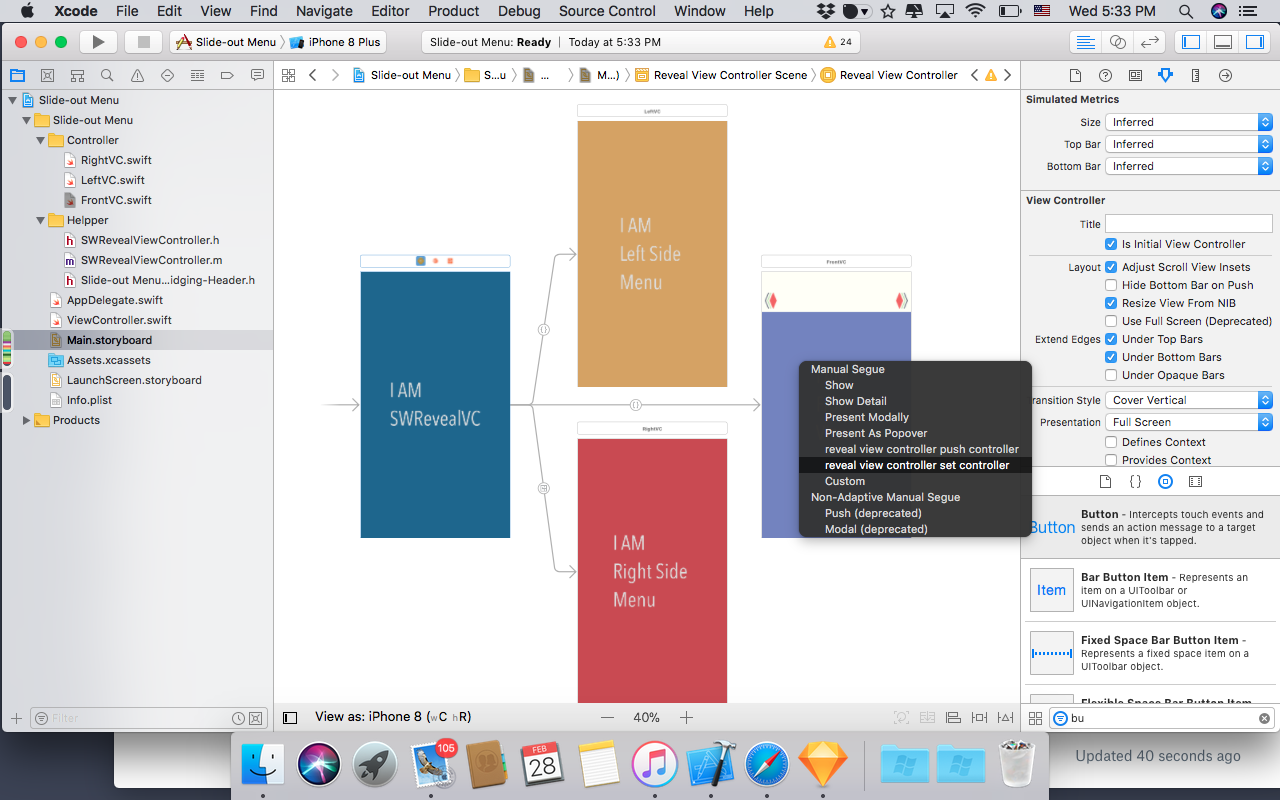

You will find three different Segue Identifiers inside the library. When you make a segue to each view controller as “reveal view controller set controller,” you should identify this segue by adding the identifier the SwrevealLibrary has provided.
Here are the Identifiers in SWRevealViewController.m :
// pragma mark - SWRevealViewControllerSegueSetController segue identifiersNSString * const SWSegueFrontIdentifier = @"sw_front";For the Front ViewController use “sw_front”.(You must have this inside your project.)NSString * const SWSegueRearIdentifier = @"sw_rear";For the left ViewController Use “sw_rear “NSString * const SWSegueRightIdentifier = @"sw_right";For the right ViewController use “sw_right”
The Identifiers...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/htaq4hrmhisniprmntmp.png)

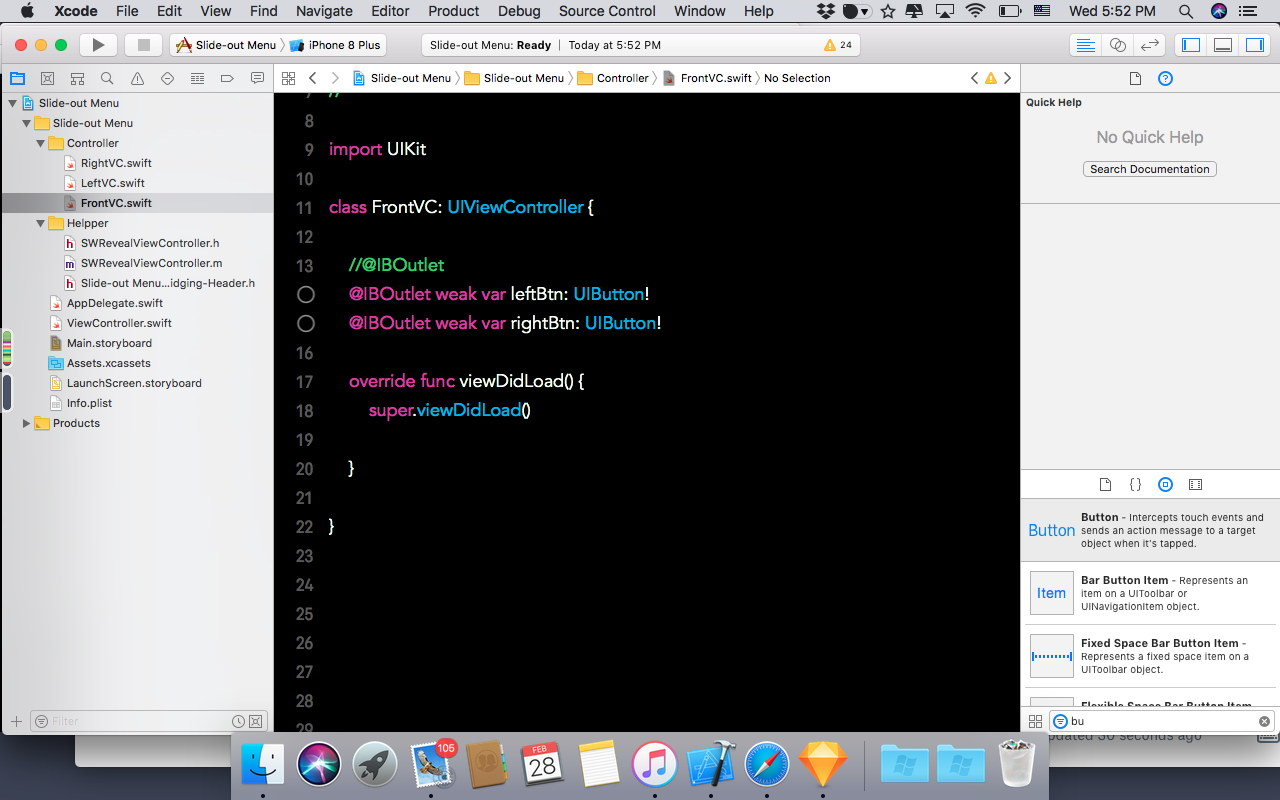

Now we are set to add the @IBOutlet for the right and left button inside FrontVC.
Finally...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/kjahnrqrpjxdqk1betfm.png)
Set up the function for Right and Left Button and add them to the Viewdidload.

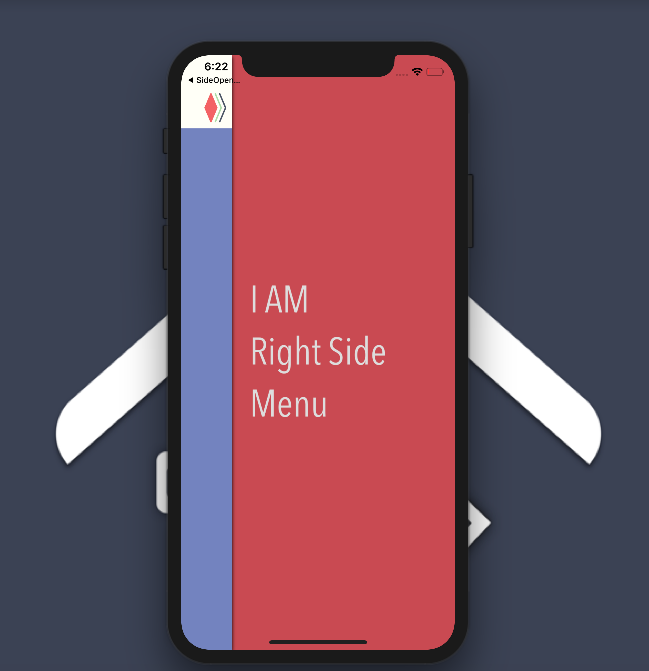

Right Menu Code...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/djlznwx9lot0pgrcl9pd.png)
override func viewDidLoad() { super.viewDidLoad() setUpRevealRightView() } func setUpRevealRightView() { rightBtn.addTarget(self.revealViewController(), action: #selector(SWRevealViewController.rightRevealToggle(_:)), for: .touchUpInside) self.view.addGestureRecognizer(self.revealViewController().panGestureRecognizer()) self.view.addGestureRecognizer(self.revealViewController().tapGestureRecognizer()) }

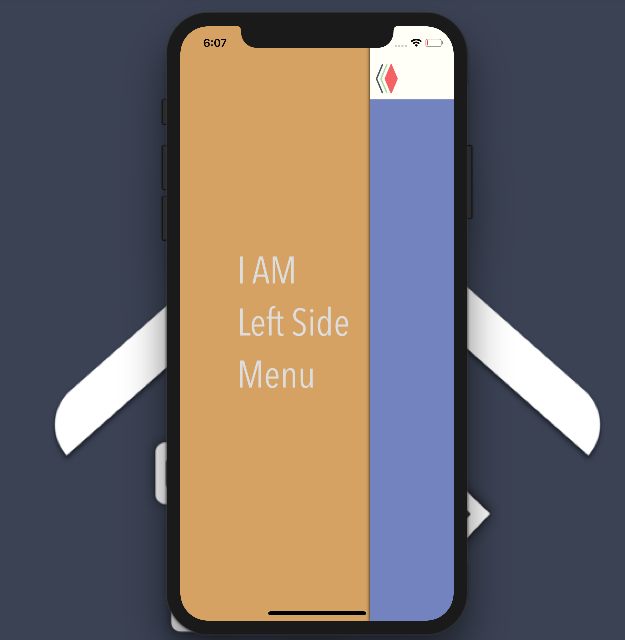

Left Menu Code...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/dalxkh3mv7rxhynhe7f5.png)
override func viewDidLoad() { super.viewDidLoad() setUpRevealLeftView() } func setUpRevealLeftView() { leftBtn.addTarget(self.revealViewController(), action: #selector(SWRevealViewController.revealToggle(_:)), for: .touchUpInside) self.view.addGestureRecognizer(self.revealViewController().panGestureRecognizer()) self.view.addGestureRecognizer(self.revealViewController().tapGestureRecognizer()) }
You can customize the side of the Slide out View Controller Right and Left by using this simple function for the left side.

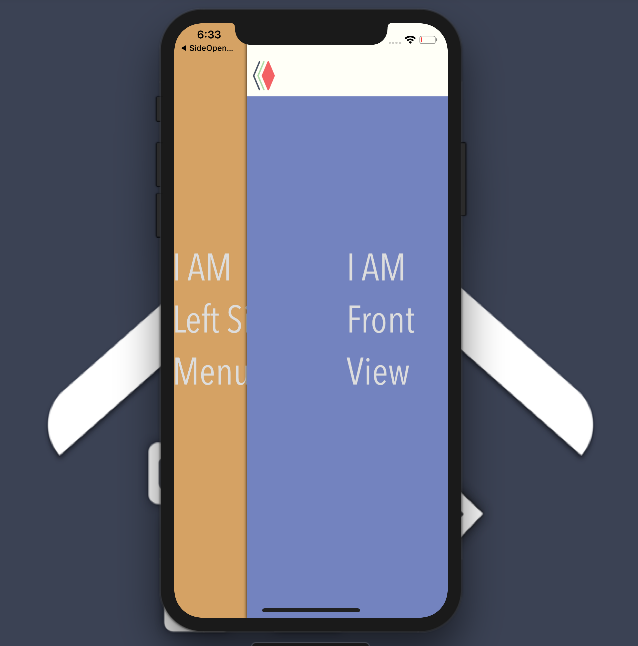

Front View Code...
![](https://res.cloudinary.com/jerrick/image/upload/d_642250b563292b35f27461a7.png,f_jpg,q_auto,w_720/djmoho9bgpnxvfzxbuyb.png)
Here we ask the size of left side menu be only 100, as you can see above.
import UIKitclass LeftVC: UIViewController {override func viewDidLoad() { super.viewDidLoad() setupRevealView()}func setupRevealView() { self.revealViewController().rearViewRevealWidth = 100 }}
