Strain Gauges: The Smallest Sensor on the Biggest Structures

Walk under a highway overpass on a busy afternoon and the concrete feels solid, permanent, almost geological. It is not. Every truck that crosses it bends the deck by a tiny amount, then lets it spring back. Steel girders stretch on a hot day and shrink overnight. The frame of a haul truck in the Pilbara flexes over every rut in the haul road. None of that movement is visible to the eye, yet all of it can be measured, and the device that does most of the measuring is small enough to sit on a fingernail.

It is called a strain gauge, and for something that matters this much it gets remarkably little attention.

A pattern of metal, glued down

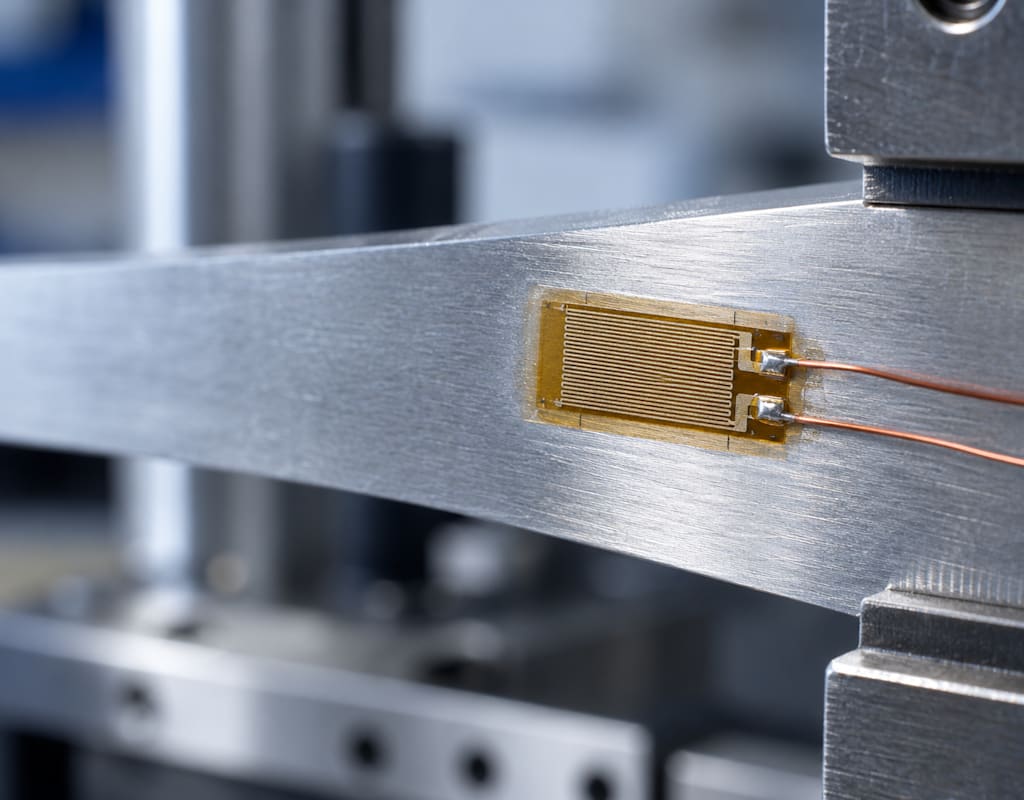

At its simplest, a strain gauge is a fine metal grid laid on a thin, flexible backing. The grid zigzags back and forth so that a long length of conductor fits into a small patch. That patch is bonded directly to the surface of the part being tested with a specialised adhesive, so the gauge and the steel, aluminium or concrete underneath behave as one.

When the part stretches, the grid stretches with it. The metal lines become slightly longer and slightly thinner, and their electrical resistance rises. When the part is squeezed, the opposite happens and resistance falls. The change is tiny. Engineers talk about strain in microstrain, millionths of a unit of length, and a structure doing perfectly ordinary work might only move a few hundred of those millionths.

The relationship between that stretch and the change in resistance is described by a number called the gauge factor. For the common metal foils it sits at around 2, which means a given percentage of strain produces roughly twice that percentage change in resistance. Small enough to be lost in the noise, unless the electronics are set up to catch it.

The bridge that makes the signal visible

That is where a circuit designed in the 1800s comes in. The Wheatstone bridge arranges four resistances in a diamond, and when they are balanced the output across the middle is zero. Swap one of those resistances for a strain gauge and any change in the gauge knocks the bridge out of balance. The output voltage that appears is small, but it is clean and proportional to the strain, so an amplifier and a data logger can turn it into a reading an engineer can trust.

Arrange two or four gauges in the same bridge and something useful happens. Effects that hit every gauge equally, such as a gradual change in temperature, can cancel out, while the bending or stretching being measured adds up. It is one of those quietly elegant pieces of engineering that has survived for well over a century because nobody has found a better way to do the job.

From wire to foil

The bonded resistance strain gauge took shape in the United States in the late 1930s, when researchers working separately at Caltech and MIT arrived at similar ideas at around the same time. Early versions used fine wire wound into a grid. A decade or so later, foil gauges arrived, made by etching the grid pattern out of a thin metal sheet much like a printed circuit board.

Foil changed everything. Patterns could be made smaller, more consistent and in far more shapes, from single straight grids to rosettes that measure strain in three directions at once. The basic principle has barely moved since then, yet the range of gauges available today covers everything from cryogenic tanks to engine and turbine parts running at several hundred degrees.

Temperature, the quiet saboteur

Anyone who has fitted a strain gauge outdoors learns quickly that heat is the enemy of a good reading. Metal expands as it warms, and the gauge grid has its own response to temperature as well. Left unchecked, a sunny afternoon can look exactly like a heavy load.

Manufacturers handle this with self temperature compensated gauges, where the foil alloy is matched to the thermal expansion of the material it will be glued to. A gauge meant for steel is a different product from one meant for aluminium, even if they look identical in the packet. Put the wrong one on and the data drifts every time the weather changes. For long term monitoring in Australian conditions, where a steel structure can swing through a wide temperature range in a single day, that match matters more than almost anything else on the specification sheet.

Choosing the right one is most of the work

What surprises people new to the field is how much of a good measurement is decided before anything gets glued down. Grid length affects how well a gauge copes with uneven materials such as concrete or composites. Resistance, typically 120 or 350 ohms, affects heat build up and compatibility with the instrument reading it. The backing material sets the temperature range. The adhesive has to suit the surface and the conditions the gauge will live in, and a waterproof or weldable gauge might be the only realistic option for a part that sits outside or underwater.

Engineers who work through how to choose a strain gauge before ordering tend to have far fewer surprises in the field, because each of those decisions narrows the options until the right gauge is obvious. Suppliers that hold a broad range of strain gauges along with matching adhesives and coatings make that process easier, since the whole installation can be specified together rather than pieced together from different sources.

Why it still matters

It would be easy to assume that a sensor invented before the Second World War has been replaced by something newer. In some niches, optical and wireless sensors have taken over. Yet bonded foil gauges remain the reference point that most other methods are checked against, and they are still the sensing element inside a huge share of the load cells, torque transducers and pressure sensors in everyday use.

They are inexpensive, accurate when installed properly, and small enough to fit almost anywhere. When a new crane boom is proof tested, when a rail bogie is checked for fatigue, or when a research team wants to know exactly how a composite panel behaves under load, a strain gauge is very often the first tool reached for.

The next time a bridge carries a line of traffic without complaint, it is worth remembering that somewhere in the world, a few squares of foil and a little glue are telling an engineer exactly how hard structures like it are working.
