Simple Guide to Creating Parametric CAD from 3D Scan Data

Providing a solution to transform 3D scan data into parametric CAD models.

By Ryan SteinPublished 10 months ago 6 min read
Like
Guide to Creating Parametric CAD from 3D Scan Data

In recent years, the field of 3D scanning has seen tremendous advancements, allowing for the capture of detailed and accurate representations of physical objects and environments.

However, the challenge lies in converting this raw scan data into usable CAD (Computer-Aided Design) models. This is where Scan to CAD comes into play, providing a solution to transform 3D scan data into parametric CAD models.

In this guide, we will explore the concept of Scan to CAD, its significance, benefits, software tools used, and its applications across various projects.

What is Scan to CAD?

Scan to CAD refers to the process of converting 3D scan data obtained from a physical object or environment into a parametric CAD model.

3D scanning involves using specialized equipment, such as laser scanners or structured light scanners, to capture the geometry and texture of an object or space. The resulting scan data is a point cloud or a mesh representation.

However, for design, analysis, and manufacturing purposes, it is often necessary to have a CAD model that is editable and can be modified parametrically.

Scan to CAD workflow bridges this gap by generating accurate and editable CAD models from scan data.

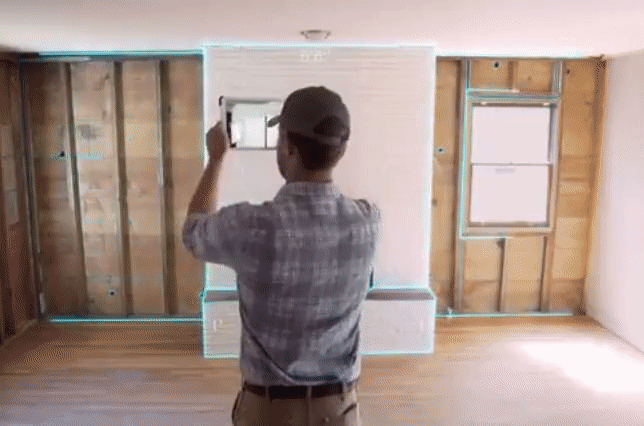

3D Scanning of the Apartment

Significance of Scan to CAD:

The significance of Scan to CAD lies in its ability to convert complex and irregular scan data into structured and editable CAD models. It enables engineers, designers, and manufacturers to leverage the advantages of 3D scanning while working within the familiar environment of CAD software.

By having a parametric CAD model, modifications, analysis, simulations, and manufacturing processes become more efficient and accurate. Scan to CAD is particularly crucial in industries such as automotive, aerospace, architecture, reverse engineering, and product design, where precision and accuracy are paramount.

However, a new methodology is already being used in the AEC industry Point Cloud Scan to BIM for more efficient data capture and 3D modeling of buildings.

Steps to Create Parametric CAD from 3D Scan Data

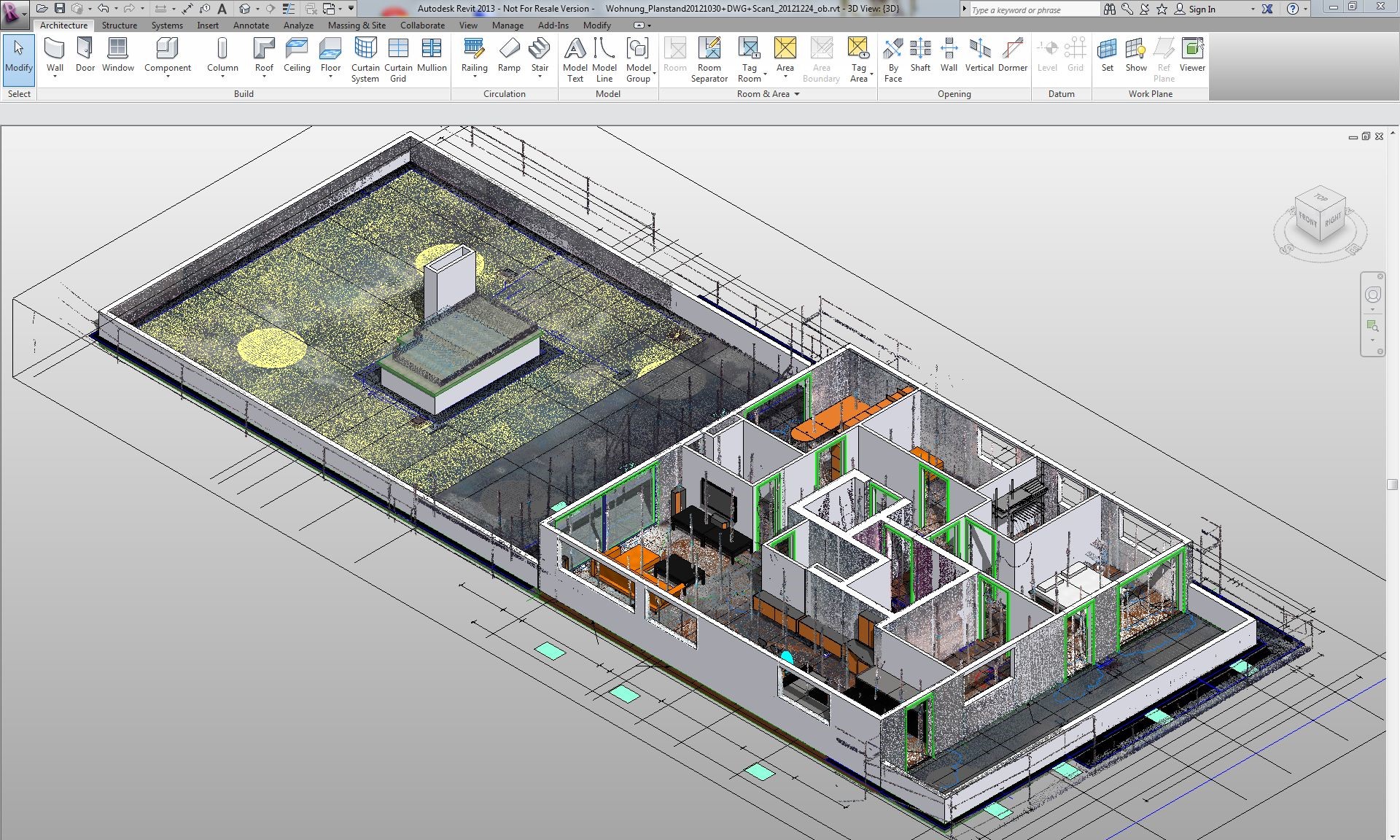

apartment revit scan to cad model

Creating parametric CAD (Computer-Aided Design) models from 3D scan data involves a series of steps to convert the scanned point cloud or mesh into a fully editable CAD model. Here is a general guide to help you through the process:

Import and clean the scan data:

  • Import the 3D scan data into CAD software (Best General-Purpose CAD Software in 2023).
  • Remove any artifacts, noise, or unwanted elements from the point cloud or mesh to ensure data quality.

Convert the data to a surface mesh:

  • Utilize software tools to convert the point cloud data into a surface mesh representation.
  • Ensure the mesh accurately captures the shape and details of the scanned object.
  • Adjust the resolution or density of the mesh to achieve the desired level of detail.

Extract key features from the mesh:

  • Identify and extract important features from the surface mesh, such as edges, curves, and specific geometric shapes.
  • These features will serve as the building blocks for the parametric CAD model.

Create reference geometry based on the extracted features:

  • Use the extracted features to create reference geometry, such as sketches or profiles, within the CAD software.
  • Ensure the reference geometry accurately represents the desired dimensions and shape of the object.

Apply constraints and dimensions for parametric control:

  • Apply constraints, such as parallelism or perpendicularity, to the reference geometry to maintain desired relationships between different parts of the design.
  • Add dimensions to specify exact measurements and ensure the CAD model remains parametrically adjustable.

Generate solid geometry:

  • Extrude or revolve the reference sketches or profiles to create solid geometry.
  • Combine multiple extrusions to form complex shapes or add additional features like holes, fillets, or chamfers.

It's important to note that these steps provide a general guideline, and the specific tools and techniques used may vary depending on the CAD software being used and the complexity of the scanned object.

Buiding Components

Benefits of Scan to CAD Implementation:

  1. Time and Cost Efficiency: Scan to CAD reduces the time and cost associated with manually recreating CAD models from scratch. By leveraging 3D scan data, the initial design process is accelerated, saving valuable resources and reducing time-to-market.
  2. Accuracy and Precision: Scan to CAD eliminates human error in the design process by capturing the intricate details of the physical object or space. The resulting CAD model is highly accurate, reflecting the precise dimensions and geometry of the scanned object.
  3. Design Flexibility: Parametric CAD models generated through Scan to CAD are editable, allowing for modifications, iterations, and optimization during the design process. Designers can easily make changes and explore different design options without starting from scratch.
  4. Reverse Engineering: Scan to CAD plays a crucial role in reverse engineering, where existing physical objects are digitized and converted into editable CAD models. This is valuable for recreating legacy parts, analyzing design intent, and enhancing product performance.

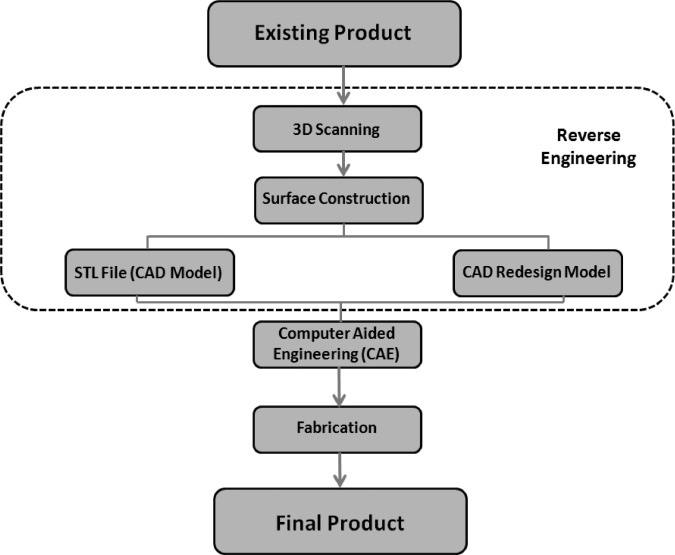

Reverse engineering

Software Tools for 3D Scan to CAD:

Several software tools are available for converting 3D scan data into parametric CAD models. Some popular options include:

  • Geomagic Design X: This software offers advanced tools for reverse engineering and converting scan data into feature-based CAD models. It provides precise control over the conversion process and allows for seamless integration with popular CAD software.
  • Autodesk ReCap: ReCap combines scan data from various sources to create 3D models that can be used in CAD software. It offers automated workflows for cleaning up and optimizing scan data and supports direct integration with Autodesk's CAD tools.
  • SolidWorks: SolidWorks provides tools for converting mesh data into solid and surface CAD models. It offers robust features for reverse engineering, enabling the creation of editable and parametric designs from 3D scan data.

Applications of Scan to CAD for Various Types of Projects:

  • Product Design: Scan to CAD is widely used in product design to create accurate representations of physical objects. It allows designers to work with existing products, modify them, and incorporate design changes seamlessly.
  • Architecture and Construction: In the field of architecture, Scan to CAD enables the creation of as-built models, building documentation, and renovations. It assists in capturing accurate measurements and geometry of existing structures.
  • Quality Control and Inspection: Scan to CAD is valuable for quality control and inspection processes, especially in industries such as automotive and aerospace. It enables the comparison of scanned objects with the original CAD design, identifying deviations and ensuring product integrity.
  • Digital Preservation and Cultural Heritage: Scan to CAD is instrumental in preserving cultural heritage by digitizing artifacts, sculptures, and historical sites. It allows for the replication, restoration, and analysis of priceless objects with high accuracy.

In conclusion, Scan to CAD is a powerful tool that bridges the gap between 3D scan data and parametric CAD models. It offers numerous benefits, including time and cost efficiency, design flexibility, and accuracy.

With the help of software tools designed specifically for 3D scan to CAD conversion, professionals can leverage scan data for various applications across industries. By incorporating Scan to CAD into their workflows, engineers, designers, and manufacturers can enhance their design processes, streamline manufacturing, and drive innovation in their respective fields.
