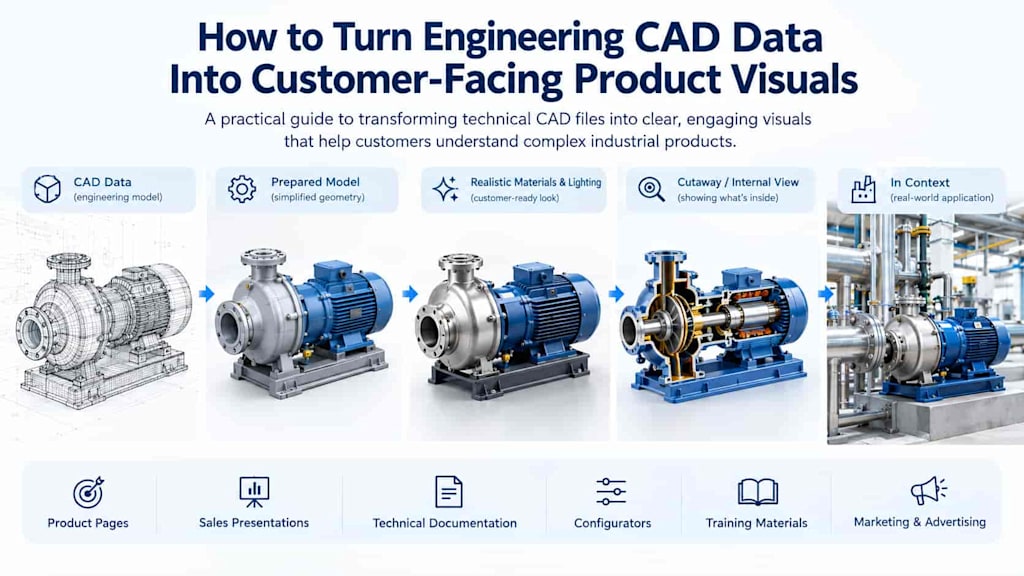

How to Turn Engineering CAD Data Into Customer-Facing Product Visuals

Engineering teams use CAD data to design products with precision. Customer-facing teams, however, need something different: visuals that communicate how a product looks, works, and fits into a real-world environment.

A detailed CAD model can contain thousands of components, internal structures, technical dimensions, materials, and manufacturing details. Much of this information is essential for engineers but irrelevant—or even confusing—to customers. Turning that technical data into useful product visuals therefore requires more than simply exporting a screenshot from a CAD application.

The process involves selecting the right information, simplifying geometry, creating appropriate materials and lighting, and designing visual assets around specific customer questions. When handled correctly, engineering data can become a valuable source for product pages, sales presentations, technical documentation, configurators, training materials, and digital marketing.

Start With the Purpose of the Visual

Before converting a CAD model, determine what the final image or interactive asset needs to communicate.

Different customer-facing applications require different visual approaches. A marketing image may focus on appearance and context, while a technical illustration may emphasize components, interfaces, or operating principles.

Common applications include:

• Product pages

• Sales presentations

• Online catalogs

• Technical brochures

• Product configurators

• Exploded-view illustrations

• Installation guides

• Training materials

• Trade-show displays

• Digital advertising

A common mistake is attempting to use the complete engineering model for every purpose. Instead, teams should define the audience and message first.

For example, a customer evaluating an industrial pump may want to understand its overall dimensions and installation environment. A maintenance professional may need to see access points and replaceable components. A sales representative may need a polished image showing the pump integrated into a production facility.

The same CAD source can support all three scenarios, but each requires a different visualization strategy.

Prepare and Simplify the CAD Model

Engineering CAD files are usually optimized for design and manufacturing rather than visualization. They may contain extremely detailed geometry, hidden components, construction elements, fasteners, internal surfaces, and other information that can make rendering unnecessarily complicated.

The first technical step is therefore model preparation.

Teams should review the CAD structure and identify:

• Components that need to appear in the final visual

• Geometry that can be removed or simplified

• Internal components that should remain hidden

• Surfaces requiring special materials

• Moving or configurable components

• Transparent or semi-transparent parts

• Labels and technical identifiers

• Assemblies that need to be separated

Simplification is particularly important when CAD data will be used for web-based visualization. A model containing millions of polygons can produce large files and slow loading times.

The objective is not to damage the engineering model but to create a visualization-ready representation. The original engineering data should remain unchanged and available for design and manufacturing purposes.

Decide Which Details Customers Actually Need

Engineering models contain enormous amounts of information. Customer-facing visuals should contain only the information that supports the intended message.

This may mean hiding bolts, internal brackets, cables, pipes, or other components that do not contribute to the explanation.

In other situations, internal components are precisely what customers need to see. A sectional view, transparent housing, or exploded diagram can reveal functionality that is impossible to understand from the exterior.

This is especially useful when showing what is inside complex machinery is important for explaining performance, maintenance, or product differentiation.

The visualization team should therefore establish a hierarchy of information. Primary components should receive the most visual attention, while secondary details should remain subdued.

This approach makes complex products easier to understand without misrepresenting their construction.

Convert Engineering Materials Into Realistic Visual Materials

CAD models often contain material definitions intended for engineering calculations rather than visual presentation.

A visualization may need to replace these definitions with realistic surface properties. Metals, plastics, glass, rubber, painted surfaces, and composite materials each respond differently to light.

For customer-facing images, teams may need to define:

• Base color

• Roughness

• Metallic properties

• Transparency

• Surface imperfections

• Reflection

• Texture

• Bump or normal information

Realistic material treatment can make a significant difference in perceived product quality.

However, realism should serve communication rather than become an objective by itself. An excessively reflective surface can obscure details, while an overly complex texture can distract from the product.

The right balance depends on the visual's purpose.

Build Lighting Around the Product

Lighting is another major difference between an engineering screenshot and a professional product visual.

CAD environments often use functional viewport lighting designed to help engineers inspect geometry. Customer-facing imagery usually requires more deliberate lighting.

A visualization setup may use a combination of:

• Key lighting to define the primary form

• Fill lighting to reveal shadowed surfaces

• Rim lighting to separate the product from the background

• Environmental lighting for realistic reflections

• Local lighting to emphasize specific components

For industrial products, lighting can also communicate material differences. A polished metal surface should not look identical to painted steel or matte plastic.

Background selection matters as well. A clean studio background may work for an online catalog, while a factory environment can provide context for a sales presentation.

Create Multiple Visual Views From One CAD Source

Once the CAD model has been prepared, it can serve as the foundation for a broader visual asset library.

Instead of creating individual visuals from scratch, companies can establish a reusable scene and generate multiple views.

Possible outputs include:

• Front and rear product views

• Close-ups of important components

• Cutaway illustrations

• Exploded views

• Installation views

• Scale comparisons

• Product configurations

• Animation frames

• Interactive 3D models

This makes the original engineering data more valuable across the customer journey.

A sales team might use a clean hero image, while technical support uses the same model to produce a component-focused illustration. Marketing can create another version showing the product in a realistic industrial setting.

Add Context Where It Improves Understanding

A technically accurate product floating against a white background is useful, but context can make a visual much more informative.

For industrial equipment, contextual visualization can show:

• Where the product is installed

• How operators interact with it

• How much space it requires

• Which systems connect to it

• How components are positioned

• How the product fits into a production line

Context should be realistic enough to communicate scale and application without overwhelming the product.

For example, a large machine can be shown inside a simplified production facility with surrounding equipment intentionally de-emphasized. This allows customers to understand the machine's role without turning the image into a general factory illustration.

Preserve Engineering Accuracy

Customer-facing visuals should be attractive, but accuracy remains essential.

A product image that shows an incorrect connector, missing safety component, or impossible configuration can create problems for sales and technical teams.

Organizations should therefore establish a review process between engineering and visualization teams.

The review can verify:

• Dimensions and proportions

• Component placement

• Product configurations

• Materials

• Connection points

• Moving parts

• Safety-related components

• Available options

Version control is equally important. If engineering changes the product after visualization assets have been created, teams need a process for identifying which customer-facing images are affected.

A structured connection between CAD revisions and visualization assets can reduce the risk of outdated product information being published.

Optimize Visuals for Their Final Platform

The same visualization should not necessarily be delivered in the same technical format everywhere.

A high-resolution image for print may require very different specifications from a web-based 3D model.

Teams should consider:

• Image resolution

• File format

• Polygon count

• Texture size

• Compression

• Loading performance

• Mobile compatibility

• Browser support

• Interactive controls

For websites, optimization is particularly important. Customers should not have to wait for a massive engineering model to load before they can understand a product.

For interactive 3D applications, geometry can often be simplified while preserving the visual characteristics that matter most.

Build a Reusable Visualization Workflow

Companies that frequently launch new products can benefit from establishing a standardized workflow instead of treating every visualization as a separate project.

A repeatable process might look like this:

1. Receive the approved CAD model.

2. Identify the customer-facing purpose.

3. Simplify and prepare the geometry.

4. Define materials and textures.

5. Build lighting and environments.

6. Create required views or animations.

7. Review technical accuracy.

8. Optimize files for their destination platforms.

9. Approve and publish the final assets.

10. Update visuals when the engineering model changes.

This workflow creates a bridge between engineering and marketing. It also makes it easier to scale visualization production across multiple products.

Conclusion

Engineering CAD data can become much more than an internal design resource. With the right preparation, it can provide the foundation for high-quality product images, technical illustrations, interactive 3D models, animations, and sales materials.

The key is to avoid treating CAD data as a finished customer-facing asset. Engineering models need to be simplified, visually refined, contextualized, and adapted to the audience and platform.

A structured visualization workflow allows companies to move from engineering data to industrial product visuals while preserving technical accuracy. By connecting engineering information with clear visual communication, manufacturers can help customers understand products faster, explore complex functionality, and make more informed purchasing decisions.
