Choosing the Right Titanium Flanges

In industrial applications, titanium flanges are crucial, ensuring the seamless connection of pipes, valves, and other machinery. Their exceptional properties, including corrosion resistance, high strength, and low weight, make them a preferred choice for demanding environments across diverse industries, from chemical processing to aerospace. However, with a wide array of titanium flanges, selecting the right one can be complex.

Understanding the Application

The journey to selecting the right titanium flange begins with a thorough understanding of the intended application. This crucial step involves identifying the piping system's specific operating conditions and requirements. Key factors to consider include:

• Operating Pressure and Temperature: Titanium flanges are available in various pressure classes and temperature ratings, ensuring compatibility with various applications. Carefully assess the maximum pressure and temperature expected in your system to select a flange that can withstand these demands.

• Fluid or Gas Compatibility: Different titanium alloys exhibit varying levels of compatibility with different fluids and gases. To prevent potential corrosion or contamination, choosing an alloy compatible with the medium being transported through the piping system is essential.

Selecting the Right Flange Type

The world of titanium flanges encompasses a variety of types, each with distinct advantages and limitations. Understanding these differences is crucial for selecting the most suitable flange for your application. Common types include:

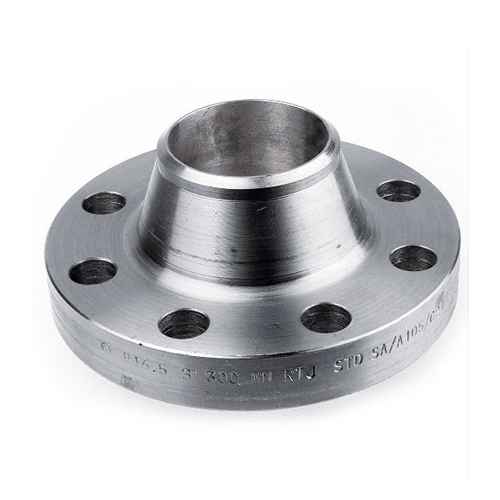

• Weld Neck Flanges: These flanges are renowned for their strength and leak-proof performance. They are welded directly to the end of the pipe, creating a robust connection ideal for high-pressure applications.

• Slip-On Flanges: Offering ease of installation, slip-on flanges are slipped over the end of the pipe and secured with bolts. While they are less robust than weld neck flanges, they are suitable for lower-pressure applications.

• Lap Joint Flanges: These flanges are commonly used with a lap joint stub end, providing flexibility and ease of dismantling. They are particularly well-suited for applications where frequent maintenance and inspection are required.

• Threaded Flanges: Threaded flanges offer simplicity and versatility. They are screwed onto the end of the pipe, making them suitable for low-pressure applications where quick installation and removal are desired.

Determining the Appropriate Flange Size

Precision is paramount when selecting the flange size. Titanium flanges are available in a comprehensive range of sizes to accommodate various pipe diameters. To ensure a perfect fit and prevent leaks, carefully measure the pipe diameter to which the flange will be connected and select the corresponding flange size.

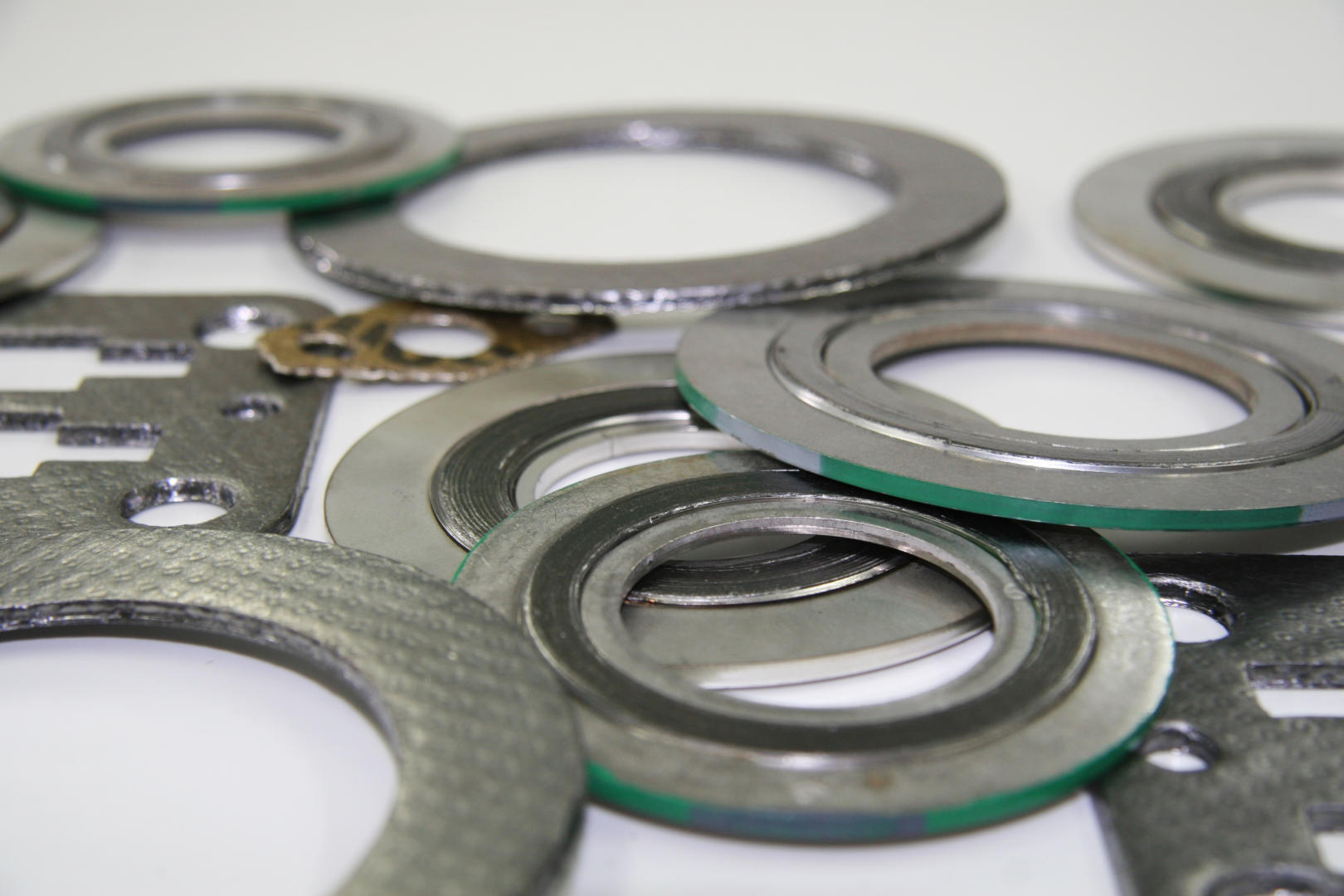

Choosing the Gasket Material

The gasket, a crucial component between the flanges, is pivotal in maintaining a leak-proof seal. Selecting the right gasket material is essential for long-term performance and reliability. Factors to consider include:

• Compatibility with Fluid or Gas: The gasket material must be compatible with the transported medium to prevent degradation or contamination.

• Operating Temperature and Pressure: The gasket material should withstand the maximum temperature and pressure expected in the piping system to maintain its integrity.

Sourcing from a Reputable Supplier

The quality and performance of titanium flanges are paramount for ensuring the safety and reliability of your piping system. Therefore, sourcing flanges from a reputable supplier is of utmost importance. Choose a titanium flanges supplier that adheres to industry standards, provides certifications, and has a proven track record of supplying high-quality products.

Additional Considerations for Choosing the Right Titanium Flanges

Beyond the core factors mentioned above, additional considerations can enhance your flange selection process:

Surface Finish: The surface finish of the flange not only impacts its aesthetics but also influences its performance. Select a surface finish that suits the application and environmental conditions.

Bolting Material: The selection of bolting material depends on the flange material and the fluid or gas being transported. Ensure compatibility to prevent potential corrosion or galvanic reactions.

Inspection and Testing: To guarantee the integrity of the flanges, ensure they have undergone proper inspection and testing procedures by relevant standards.

Conclusion

Choosing the right titanium flanges is a crucial decision that impacts your piping system's performance, reliability, and safety. By carefully considering the application requirements, selecting the appropriate flange type, determining the correct size, choosing the compatible gasket material, sourcing from a reputable supplier, and taking into account additional factors, you can make an informed decision that ensures the longevity and effectiveness of your piping system.

Key Takeaways:

• Titanium flanges offer exceptional properties, making them ideal for demanding applications.
• Carefully evaluate the operating conditions, fluid compatibility, and pressure requirements to select the suitable flange type.
• Choose the appropriate flange size to ensure a perfect fit and prevent leaks.
• Select a gasket material that is compatible with the fluid and can withstand the operating conditions.
• Source titanium flanges from a reputable supplier that adheres to industry standards and provides certifications.
• Consider additional factors such as surface finish, bolting material, and inspection and testing for enhanced performance and reliability.

By following these guidelines and conducting thorough research, you can confidently select the right titanium flanges for your specific needs, ensuring a robust and durable piping system that meets the demands of your industry.
