How to Select the Right Winding Wire for Your Electric Motor: Expert Tips

When it comes to electric motor repair or manufacturing, the type of winding wire you choose can make all the difference. Whether you’re rewinding spare parts for industrial electric motor or assembling a new consumer appliance, selecting the proper wire will affect the motor’s performance, lifespan, efficiency, and cost.

The two most commonly used types are enameled copper wire and enameled aluminum wire. While they may look similar at a glance, their properties and ideal use cases differ significantly.

In this guide, we’ll walk you through the key differences, benefits, and expert tips to help you make the right choice for your application.

🔌 What Are Winding Wires?

Winding wires, also known as magnet wires, are insulated conductors used to form coils in electric motors, transformers, inductors, and other electromagnetic devices. These wires are coated with an enamel (a type of polymer insulation) that allows them to be wound tightly in motor slots without causing short circuits.

The enamel insulation must withstand high temperatures, mechanical stress, and sometimes chemical exposure—making the material underneath the insulation (copper or aluminum) an important decision.

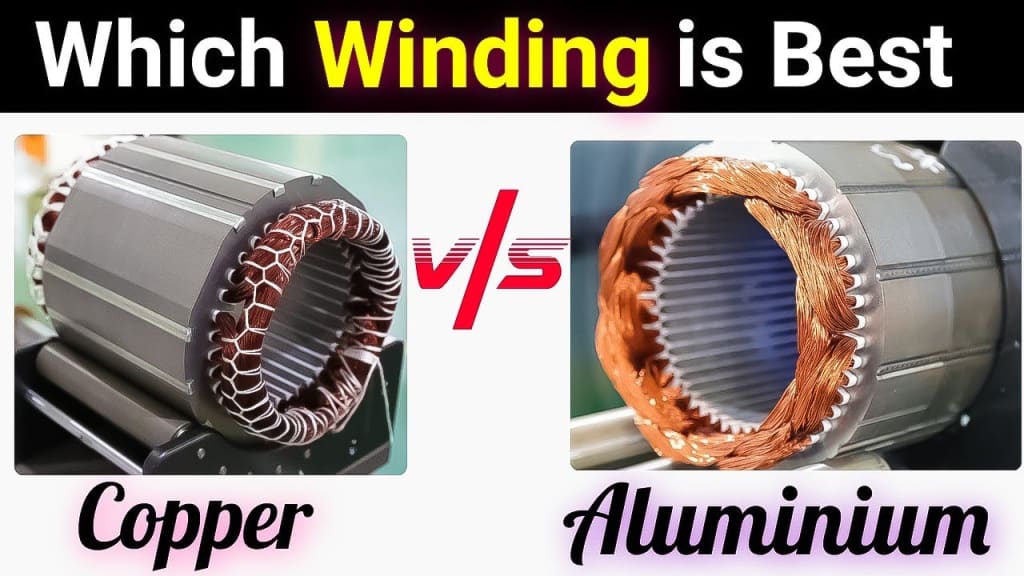

⚙️ Copper vs. Aluminum Wires: Key Differences

Understanding the material properties of copper and aluminum is the first step toward choosing the right wire. Here’s a side-by-side comparison of their major characteristics:

Feature Enameled Copper Wire Enameled Aluminum Wire

Conductivity Higher electrical conductivity Lower conductivity (≈60% of copper)

Weight Heavier Much lighter

Cost More expensive More budget-friendly

Durability Excellent thermal & mechanical strength Moderate mechanical durability

Ease of Handling Rigid, stronger Flexible but prone to damage

🏭 Application Guide: Which Wire to Use and When

✅ Use Enameled Copper Wire When:

1. High electrical conductivity is a priority
2. The motor will experience high thermal stress or load variations
3. The application involves continuous-duty cycles, such as in:
• Industrial pumps
• HVAC systems
• Elevators and conveyors
• Electric generators
4. You need higher mechanical durability, especially in high-speed motors

Copper’s superior strength and fatigue resistance make it ideal for demanding environments where reliability is non-negotiable.

✅ Use Enameled Aluminum Wire When:

1. Weight reduction is crucial
2. The application is cost-sensitive
3. The motor is low-load or intermittent-use, such as:
• Ceiling fans
• Small household appliances
• Blenders, washing machines, and ventilators
4. You're manufacturing large coil systems where material cost adds up significantly

Aluminum is especially useful in mass production settings where cost-efficiency is essential and the motor does not operate under extreme conditions. So when it comes to electrical insulators for motor repair we have to choose right winding wires.

🧰 Expert Tips for Choosing the Right Wire

Here are some pro tips to ensure you make the best choice:

1. Evaluate Motor Load & Duty Cycle

Heavier-duty motors that run for long hours or under heavy loads should always use copper wire to handle the heat and stress.

For motors that operate intermittently or under light load, aluminum is often sufficient.

2. Consider Design Constraints

If you're working with space constraints or need to minimize equipment weight (e.g., in portable devices), aluminum's lightness can be a significant advantage.

However, aluminum has lower current-carrying capacity, so you may need a larger cross-section to compensate, which can increase coil size.

3. Balance Initial Cost vs. Long-Term Efficiency

Copper has a higher upfront cost, but its lower resistance results in less power loss over time. This can reduce your electricity bill or improve battery life in portable devices.

Aluminum is cheaper and easier to source in large volumes, especially when budgets are tight.

4. Check Thermal Ratings and Specifications

Always verify the temperature class of the enamel insulation and match it with your motor’s operating range. Standard ratings include:

• Class B (130°C)
• Class F (155°C)
• Class H (180°C)

High-performance applications should use wires with Class F or H insulation.

5. Work with a Trusted Supplier

Choosing a high-quality wire from a reputable supplier ensures that you get uniform insulation, correct diameter, and reliable conductivity—all of which contribute to better motor performance.

🌐 Where to Buy Winding Wire in Ecuador

If you're an electrical technician, maintenance specialist, or manufacturer based in Ecuador, sourcing the right material locally is essential for speed and reliability.

🛒 Visit Electroshop.com.ec

Electroshop is one of Ecuador’s most trusted providers of:

• Enameled copper wire
• Enameled aluminum wire
• Motor rewinding supplies
• Bearings, capacitors, insulating materials, and more

With over 20 years of experience, Electroshop offers nationwide delivery, expert technical support, and a wide variety of wire gauges and insulation classes to fit your needs.

💬 Final Thoughts

Choosing between enameled copper and aluminum wire isn’t just about price—it’s about matching your material choice to the motor’s performance requirements, duty cycle, and operating conditions.

Whether you're rewinding an industrial pump or assembling small appliances, selecting the correct winding wire is a foundational step that affects everything from efficiency and power consumption to longevity and safety.

When in doubt, consult with a specialist and work with a supplier you trust. And if you're in Ecuador, there's no better place to start than Electroshop your one-stop shop for quality, reliability, and expert advice.
