Unleashing the Potential: Transforming Ideas into Reality with SG90 g Micro Servo

Introduction

In today's technological age, the power of transforming ideas into reality has become more accessible than ever before. With the advent of micro servo technology, such as the SG90 9g Micro Servo, the boundaries of what can be accomplished have been pushed further. This article aims to dive deep into the world of SG90 9g Micro Servo and explore its various applications, technical specifications, setup process, control methods, and more.

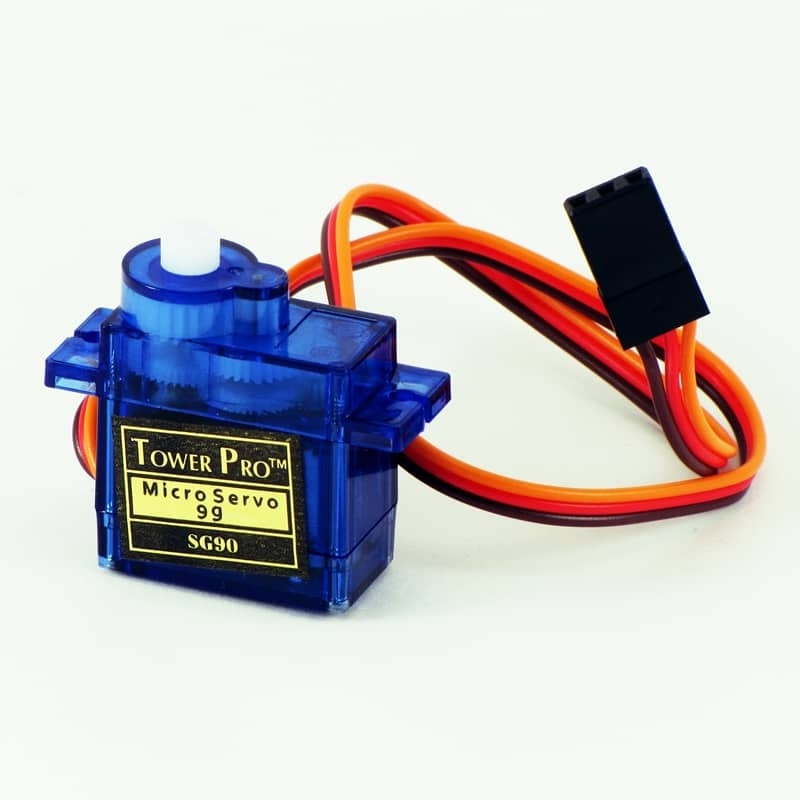

Introducing the SG90 9g Micro Servo

The SG90 9g Micro Servo is a compact and versatile servo motor that has gained significant popularity among electronics enthusiasts and hobbyists. Its small size, lightweight design, and high degree of precision make it an ideal choice for a wide range of projects. From robotics and automation to art installations and mechanical control systems, the SG90 opens up endless possibilities for turning ideas into reality.

Understanding the Basics of the SG90 9g Micro Servo

History and Development of Micro Servos

Micro servos, including the SG90, have a fascinating history that traces back to the early days of robotics and automation. These miniature marvels have come a long way in terms of technological advancements, with refined mechanical and electrical components to achieve enhanced performance and reliability.

Technical Specifications and Capabilities of the SG90

The SG90 boasts impressive technical specifications that contribute to its exceptional performance. With a weight of just 9g, it can generate a torque of up to 1.8 kg/cm. Its operating voltage ranges from 4.8V to 6V, and it can rotate from 0 to 180 degrees. These specifications make the SG90 an ideal choice for various applications, both small-scale and large-scale.

Comparison with Other Servo Models

When exploring servo options, it is essential to understand how the SG90 compares to other models in the market. While there are several servo motors available, the SG90 stands out due to its compact size, lightweight design, and affordability. Additionally, its compatibility with different control methods and programming options makes it highly versatile.

Exploring the Applications of the SG90 9g Micro Servo

The versatility of the SG90 9g Micro Servo opens up a plethora of applications where it can be utilized. Let's delve into some of the exciting possibilities:

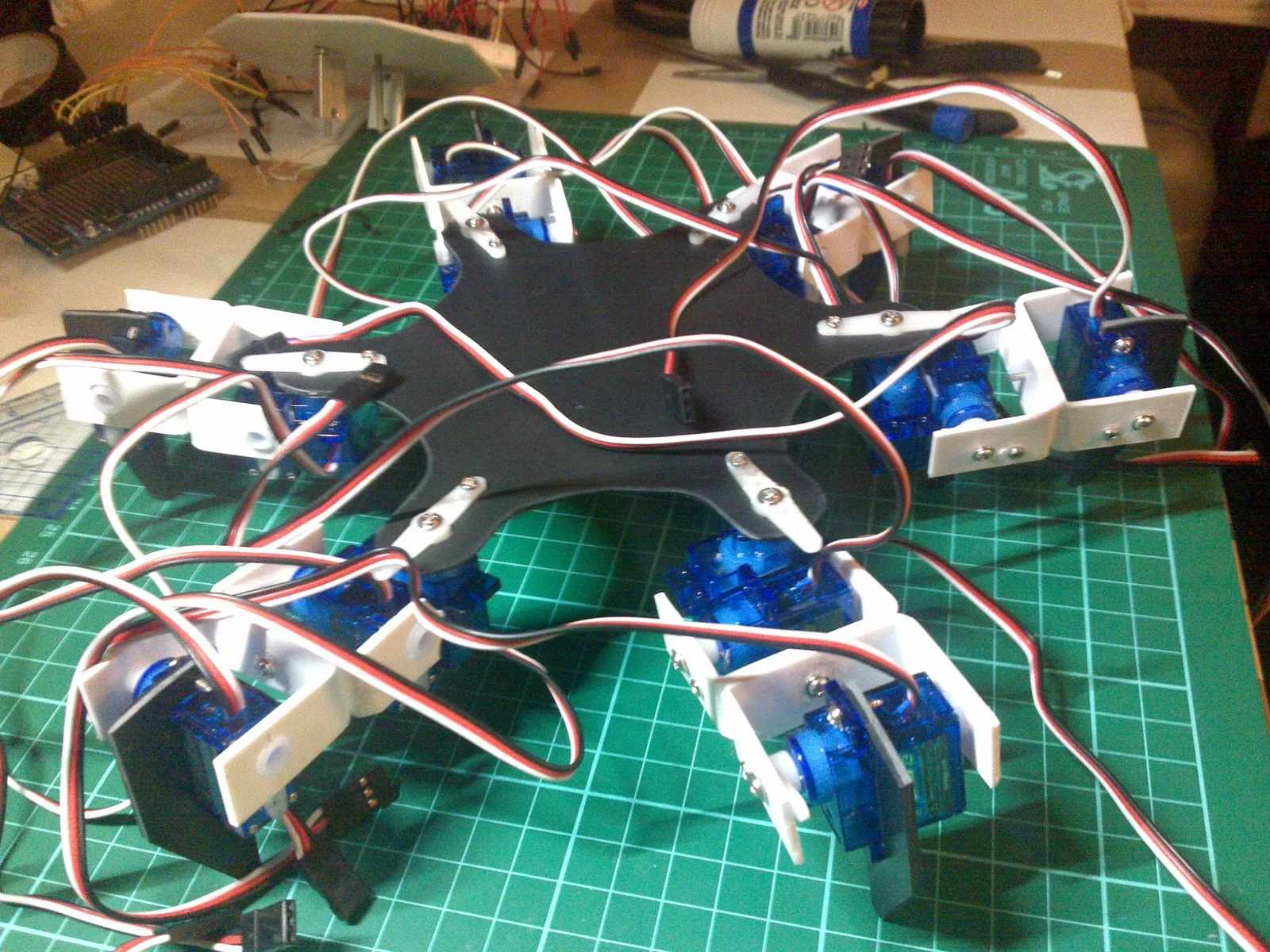

Robotics and Automation

The SG90 serves as a crucial component in robotics and automation systems. It enables joint movements in robotic arms, allowing for precise control and manipulation. By integrating multiple SG90 servos, complex tasks and maneuvers can be achieved, making it a game-changer in the field of robotics.

DIY Projects and Prototyping

For DIY enthusiasts and makers, the SG90 is a go-to choice for bringing their ideas to life. Whether it's building a remote-controlled car or creating a robotic pet, the precision and reliability of the SG90 make it an indispensable tool for prototyping and experimenting.

Mechanical Control Systems

Mechanical control systems heavily rely on servo motors for precise motion control. The SG90's compact size and exceptional torque make it an excellent choice for mechanisms like automated gates and doors, where accuracy is paramount.

Artistic and Creative Endeavors

Artists and designers are increasingly turning to the SG90 to add movement and interactivity to their creations. Its ability to create kinetic sculptures, animatronics, and interactive installations expands the boundaries of artistic expression.

Getting Started: Setting Up and Connecting the SG90 9g Micro Servo

Before diving into the world of SG90 9g Micro Servo, it is crucial to understand the setup and connection process. Let's break it down step-by-step:

Required Components for Integration

To integrate the SG90, you will need a few essential components. These typically include the servo motor itself, jumper wires, a power supply, and a microcontroller or development board.

Understanding Servo Terminology

Familiarizing yourself with servo terminology is essential for proper setup and control. Terms such as pulse width modulation (PWM), position feedback, and servo angle play a vital role in harnessing the full potential of the SG90.

Step-by-Step Installation Guide

To install the SG90, start by connecting the power supply and ground wires to the appropriate ports on the servo motor. Next, connect the control wire to the microcontroller or development board, ensuring it is properly seated. Finally, secure the servo motor in its desired location using mounting brackets or other suitable means.

Configuring and Controlling the SG90 9g Micro Servo

Overview of Servo Control Methods

Controlling the SG90 can be achieved through various methods, depending on the project requirements. The most common methods include manual control via potentiometers, hardware control using switches, and software control through microcontrollers or development boards.

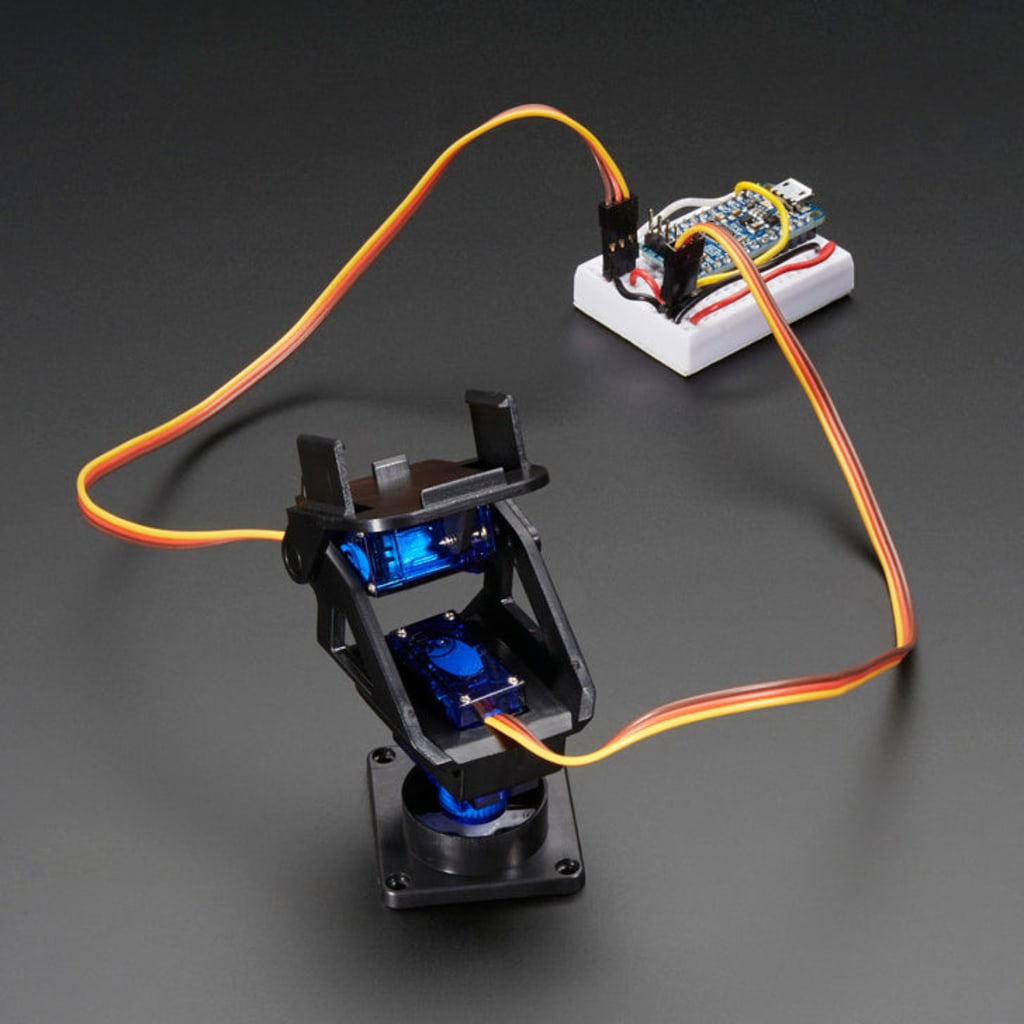

Interfacing with Microcontrollers and Development Boards

The SG90 is compatible with popular microcontrollers and development boards such as Arduino, Raspberry Pi, and STM32. By interfacing the servo with these platforms, you can leverage their extensive libraries and programming environments for seamless control.

Programming Options: Arduino, Raspberry Pi, etc.

By utilizing programming platforms like Arduino or Python (for Raspberry Pi), the full potential of the SG90 can be harnessed. These programming languages offer intuitive interfaces and abundant resources to control the servo's position, speed, and other parameters.

Testing Servo Functionality and Troubleshooting

Thoroughly testing the functionality of the SG90 is crucial before integrating it into your project. Troubleshooting common issues, such as twitching or incorrect movements, can be done through careful calibration and adjustments to the control signals.

Leveraging the SG90 9g Micro Servo for Robotics Applications

Using the Servo for Joint Movements in Robotic Arms

Robotics applications heavily rely on servo motors like the SG90 to achieve precise joint movements in robotic arms. By accurately controlling the servo's angle and speed, complex tasks and delicate manipulations can be accomplished.

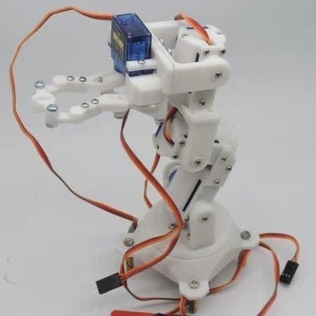

Implementing Servo-Controlled Grippers

Incorporating the SG90 in gripper mechanisms allows for precise control over object manipulation and gripping forces. Whether it's picking up fragile objects or tightly gripping heavy loads, the servo-controlled grippers offer unparalleled dexterity.

Integrating Servos in Robotic Vehicles

The SG90 finds its place in the world of robotic vehicles, providing control over steering mechanisms, acceleration, and braking. By intelligently incorporating multiple servos, complex locomotion patterns and maneuvers can be achieved.

Unleashing Creativity: Art and Design Projects with the SG90 9g Micro Servo

Creating Interactive Sculptures

The SG90 enables artists to create mesmerizing interactive sculptures that captivate audiences. By incorporating servo-controlled movement, these sculptures come to life, immersing viewers in a dynamic and engaging experience.

Animatronics: Bringing Objects to Life

Through the precise motion control offered by the SG90, the realm of animatronics has flourished. From lifelike characters in theme parks to realistic animal replicas in museums, the servo's ability to create natural movements brings objects to life like never before.

Kinetic Art and Installations

The marriage of art and motion is epitomized by kinetic art and installations. The SG90 serves as a driving force behind these mesmerizing creations, producing hypnotic movements that are sure to leave a lasting impact.

Transforming DIY Projects with the SG90 9g Micro Servo

Adding Motion to Props and Decorations

In the realm of DIY projects, the SG90 plays a key role in adding motion to static props and decorations. Whether it's a moving Halloween skeleton or an animated party centerpiece, the servo's compact size and precise control enable captivating visual effects.

Building Automated Systems and Mechanisms

From automated doors and windows to complex mechanisms in home automation projects, the SG90 is a vital component for building automated systems. By cleverly integrating the servo's motion control, a world of convenience and innovation can be unlocked.

Enhancing Remote-Controlled Vehicles and Drones

Remote-controlled vehicles and drones can reach new heights with the incorporation of the SG90. By allowing precise control over steering mechanisms, camera angles, and other functions, the servo elevates the overall performance and functionality of these devices.

Applying the SG90 9g Micro Servo in Mechanical Control Systems

Utilizing Servos for Precise Motion Control

Mechanical control systems often require precise and repeatable motion control. The SG90's ability to rotate within a specified angle range and hold its position firmly comes to the fore in applications that demand high accuracy.

Implementing Automated Gates and Doors

Automated gates and doors benefit from the SG90's compact size and torque capabilities. By integrating the servo into their mechanisms, smooth and reliable gate or door movements can be achieved, offering convenience and security.

Improving Accuracy in Industrial Machinery

The SG90 can be a game-changer in industrial machinery applications where precision is paramount. By providing precise control over critical movements, the servo contributes to enhanced accuracy and productivity in manufacturing processes.

Exploring Advanced Features and Capabilities of the SG90 9g Micro Servo

Servo Speed and Torque Optimization

Fine-tuning the speed and torque performance of the SG90 can be critical in certain applications. Various techniques, such as modifying control signals and adjusting mechanical linkages, can optimize these parameters to suit specific project requirements.

Advanced Servo Control Techniques

Servo control goes beyond basic position and speed adjustments. Advanced techniques, such as PID control and feedforward control, offer improved stability, responsiveness, and overall performance of the SG90 in complex applications.

Expanding Servo Functionality with Modifications

Innovation knows no bounds when it comes to modifying the SG90 for specific purposes. From extending the range of motion to customizing the servo's control interface, modifications can unlock new functionalities and expand the servo's range of applications.

Transforming Educational Experiences with the SG90 9g Micro Servo

Hands-On Learning with Servos

The SG90 serves as an invaluable tool for hands-on learning experiences, particularly in STEM (Science, Technology, Engineering, and Mathematics) education. From exploring basic concepts of motion control to delving into advanced robotics, the servo opens up a world of interactive learning opportunities.

Integrating Servos in STEM Curricula

By integrating servos like the SG90 in STEM curricula, educators can stimulate students' curiosity and creativity. The servo's versatility allows for practical experimentation and project-based learning, empowering students to develop problem-solving and critical thinking skills.

Encouraging Innovation and Problem-Solving Skills

Working with servos, such as the SG90, instills a sense of innovation and encourages students to think outside the box. By exploring the endless possibilities and challenges associated with servo-controlled systems, young minds are inspired to create and solve real-world problems.

Pushing the Boundaries: Cutting-Edge SG90 9g Micro Servo Projects

Exploring Servo-Driven Exoskeletons

The SG90's high degree of precision and compact size make it a fascinating component in the realm of exoskeletons. By employing multiple servos in the elaborate mechanism, incredible advancements in mobility and rehabilitation can be achieved.

Robotic Prosthetics and Rehabilitation

In the field of assistive technology, the SG90 contributes to the development of sophisticated robotic prosthetics. By combining the servo's precise motion control with advanced sensors, those with limb impairments can regain dexterity and independence.

Biomedical Applications

The SG90's potential extends beyond traditional robotics into the realm of biomedical applications. From adjustable medical equipment to therapeutic devices, the servo's ability to provide controlled and precise movements finds utility in the healthcare field.

Real-World Success Stories: Innovative Applications of the SG90 9g Micro Servo

Industry Examples and Case Studies

Numerous industries have leveraged the capabilities of the SG90 to solve complex challenges and drive innovation. From aerospace engineering to manufacturing automation, the servo is a key enabler for revolutionizing existing practices and achieving industry-wide breakthroughs.

Revolutionary Concepts Using the SG90

The SG90 has been at the forefront of pioneering concepts that challenge conventional norms. Examples include swarm robotics, where large numbers of individual SG90 servos work collectively, and haptic interfaces, allowing users to interact with virtual environments through force feedback.

Impact on Various Sectors

The impact of the SG90 is felt across a wide range of sectors, including but not limited to education, healthcare, entertainment, and manufacturing. From fostering creativity and learning to improving efficiency and productivity, the servo's influence transcends boundaries.

Overcoming Challenges: Troubleshooting and Maintenance of SG90 9g Micro Servos

Common Issues and Solutions

Even with the reliable performance of the SG90, occasional issues can arise. Common problems such as servo jitter, overheating, or loss of position can be addressed through proper calibration, lubrication, and careful handling.

Maintenance Tips for Long Servo Lifespan

To ensure the longevity of the SG90, regular maintenance is crucial. Simple practices like cleaning and lubricating the gears, as well as protecting the servo from dust and moisture, can significantly extend its lifespan.

Safety Precautions and Best Practices for Working with SG90 9g Micro Servos

Electrical Safety Guidelines

Adhering to electrical safety guidelines is essential when working with servos. Avoiding electrical overload, using appropriate power supplies, and minimizing the risk of short circuits are just a few of the precautions to consider for a safe and reliable working environment.

Proper Servo Handling and Installation

To prevent damage to the SG90 and ensure optimal performance, proper handling and installation procedures must be followed. This includes avoiding excessive force during installation, providing adequate clearance for movement, and securing the servo to withstand vibrations or shocks.

Summary and Conclusion

The SG90 9g Micro Servo has solidified its position as a game-changer in the world of electronics and robotics. Its compact size, precise motion control, and versatility have opened up new possibilities for turning ideas into reality. Whether it's robotics, artistic creations, DIY projects, or educational initiatives, the SG90 empowers individuals to unleash their creativity and drive innovation.

FAQs (Frequently Asked Questions)

Can the SG90 9g Micro Servo be used in outdoor applications?

While the SG90 is not specifically designed for outdoor use, it can be utilized in outdoor projects with appropriate weatherproofing measures and protection from moisture.

What is the recommended power supply for the servo?

The SG90 operates within a voltage range of 4.8V to 6V. It is essential to use a regulated power supply within this range to ensure optimal performance.

Can multiple servos be controlled simultaneously?

Yes, multiple servos can be controlled simultaneously by connecting them to separate output pins on the microcontroller or using specialized servo control boards.

Are there alternative servo models with similar capabilities?

While the SG90 is a popular choice, there are various alternative servo models available with similar capabilities. These include the MG90S, SG92R, and TowerPro MG90D, among others.

Is it possible to modify the range of motion of the SG90?

Yes, the range of motion of the SG90
