Continuous Integration/Delivery (CICD) With GoCD for Cloud Foundry — Simple Pipeline Workflow

Part 1

Continuous Integration/Delivery (CICD) With GoCD for Cloud Foundry — Simple Pipeline Workflow

GoCD Server Installation on Mac OS X

1.Double-click the file downloaded from the downloads page to unzip the contents.

wget https://download.gocd.io/binaries/17.3.0-4704/osx/go-server-17.3.0-4704-osx.zip

unzip -a go-server-17.3.0-4704-osx.zip

2. Double-click on the Go Server.app icon to open the launcher.

3. While the GoCD server is starting up, you'll see a progress bar in the top left of your screen.

4. Once the GoCD server has started, it will open your default browser to the GoCD dashboard page (defaults to: http://localhost:8153).

Location of GoCD server files

/Users/{user}/Library/Application Support/Go Server

GoCD Agent Installation on Mac OS X

1.Double-click the file downloaded from the downloads page to unzip the contents.

wget https://download.gocd.io/binaries/17.3.0-4704/osx/go-agent-17.3.0-4704-osx.zip

unzip -a go-agent-17.3.0-4704-osx.zip

2.Double-click on the Go Agent.app icon to open the launcher.

The very first time you run the GoCD agent on your machine you will be prompted for the hostname or IP address of your GoCD server. By default it will try connecting to the local machine. Click the OK button to continue.

Location of GoCD Agent files

/Users/{user}/Library/Application Support/Go Agent

Registering your agent with the server

For security reasons, all newly installed Go agents need to be enabled on the Go server before work is assigned to them. This prevents an unauthorized person from getting access to your source code. To enable a newly installed Go agent, do the following:

1.Open the Go server dashboard

2.Find the agent you've just installed on the list and add the agent . The Go server will now schedule work for this agent.

Enable Agent

Add Resource to agent

Setup pipeline for CICD Simple Workflow

Create build package pipeline

Create build package stage

Step 1: Basic Settings -> provide your pipeline name and group name

Step 2: Materials -> select material type , provide repo url and branch

Sample spring boot app -> https://github.com/devxchangeio-blog/user-service.git

Step 3. provide your stage name & job name

Step 4. Select Task Type as more..

Add the gradle command

./gradlew

Arguments

--profile

clean

build

Your build package pipeline is created

Step 5. Goto user-service-build-package → buildPackage →build

Assign the agent to the resources to run the job. You can assign multiple agent to the job and save.

Step 6. Export artifact (jar or war) to destination

Step 7. Trigger the pipeline

Create build package was successful and artifact published to destination.

Create Deploy to DEV pipeline

Step 1: Basic Settings -> provide your pipeline name and group name

Step 2: Materials -> select material type , provide deployment repo url and branch

Deployment script -> https://github.com/devxchangeio-blog/gocd_deployment_manifest.git

dev/deployment

deploy.sh -- download

manifest.yml -- add you application properties

applications:-

name: user-service

memory: 256MB

instances: 1

host: user-service-dev

route: user-service-dev

path: ../user-service/user-service-0.0.1-SNAPSHOT.jar

buildpack: java_buildpack

Step 3. provide your stage name & job name

Step 4. Select Task Type as script executor .. and Shell -> bash

Script

chmod +x dev/deploy.sh -- change the mode

./dev/deploy.sh -- push the artifact to cloud foundry

Step 5. Goto user-service-deploy-to-dev pipeline → Environment variables

Add below variable to your environment

deploy.sh - accept below variables

CF_ORG : your org name

CF_SPACE : your space name

CF_API : https://api.run.pivotal.io -- your console url

CF_USER : your user name

CF_PASS : your password

Step 6 : Goto Materials → Add Material → Pipeline

Material Name

user-service-build-package

Add dependency pipeline

user-service-build-package [buildPackage]

Step 7. Goto user-service-deploy-to-dev → General Option → Label Template

to maintain the build count

${user-service-build-package}

Step 8. user-servie-deploy-to-dev → deployStage → deploy-to-dev

Assign the agent to the resources to run the job. You can assign multiple agent to the job and save.

Step 9. user-servie-deploy-to-dev → deployStage → deploy-to-dev → Tasks- Add new task → Fetch Artifact

Trigger the deploy pipeline

Deployed to dev environment.

application pushed to hosted pivotal cloud foundry .

Create environments

From the home page, click environments and add a new Pipeline Environment if none exists using "Add A New Environment".

  • Make sure Pipeline Environment has an agent associated with it in order for any pipeline within it to run. Agents can be added via 'Add Agents' tab when you create environment or can be managed using 'Agents' tab, as shown above.
  • Once environment is create, go to 'Environments' tab from home page, and click on the environment created. It appears like this:

Flow the same steps and create other deploy pipeline

Create Deploy-to-qa pipeline

Add Fetch artifact (build->dev)

user-service-build-package/user-servie-deploy-to-dev

Script Executor

chmod +x qa/deploy.sh -- change the mode

./qa/deploy.sh -- push the artifact to cloud foundry

Create Deploy-to-stg pipeline

Add Fetch artifact (build-> dev->qa)

user-service-build-package/user-servie-deploy-to-dev/user-servie-deploy-to-qa

Script Executor

chmod +x stg/deploy.sh -- change the mode

./stg/deploy.sh -- push the artifact to cloud foundry

Create Deploy-to-prd pipeline

Add Fetch artifact (build-> dev->qa->stg)

user-service-build-package/user-servie-deploy-to-dev/user-servie-deploy-to-qa/user-servie-deploy-to-stg

Script Executor

chmod +x prd/deploy.sh -- change the mode

./prd/deploy.sh -- push the artifact to cloud foundry

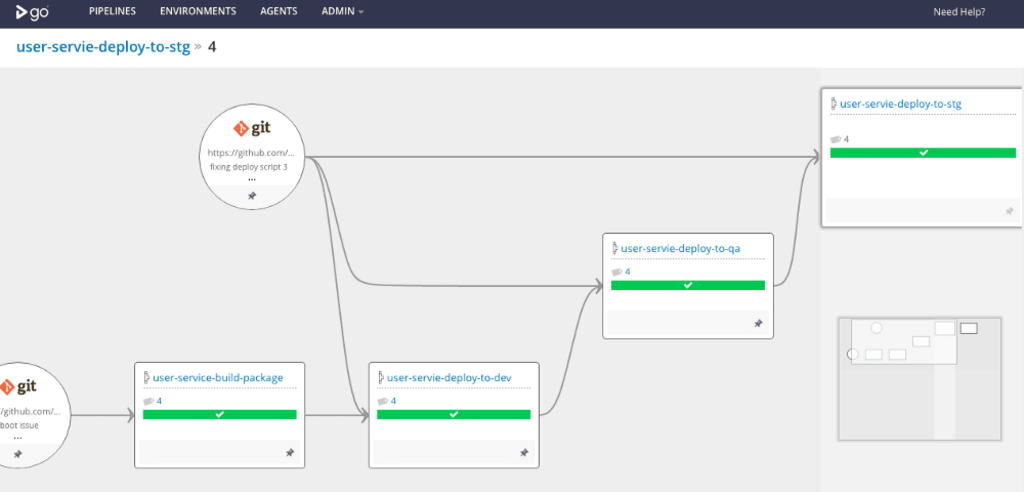

CICD Workflow
