Advantages and Disadvantages of Indoor Switchgear

Indoor switchgear plays a pivotal role in modern electrical systems. However, while its installation within buildings presents numerous advantages, it also carries certain locational drawbacks. This article delves into the advantages and disadvantages of indoor switchgear.

Understanding Switchgear

Switchgear encompasses all electrical components used for controlling and distributing power within an electrical system. This includes elements such as circuit breakers, contactors, and relays that are grouped together for this purpose.

A critical decision in electrical system design involves selecting the location for switchgear installation. For many applications, outdoor placement is preferable. However, in some scenarios, housing switchgear inside a building is the optimal choice.

Indoor Type Switchgear

Indoor switchgear is defined as switchgear exclusively designed for installation inside various types of buildings, including residential, commercial, industrial, and enclosed spaces. Typically, these installations are housed in dedicated rooms known as switchgear rooms.

The key distinction between indoor and outdoor switchgear lies in environmental exposure, with indoor switchgear being protected from external elements like wind, dust, rain, and snow.

Major Types of Indoor Switchgear

Indoor switchgear comes in different types, encompassing diverse voltage ratings, insulation mediums, and design variations. In terms of design, indoor switchgear is commonly available as either "metal enclosed" or "metal clad," each with unique construction features.

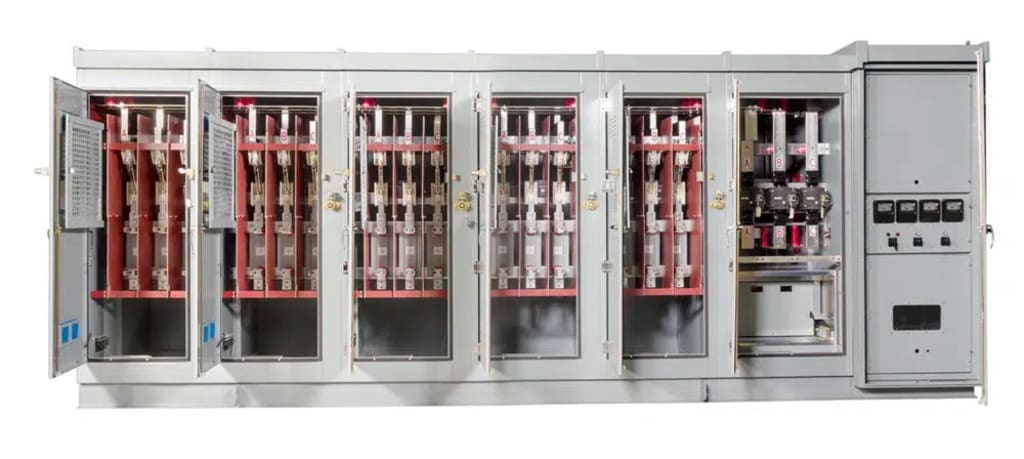

Metal Enclosed Switchgear: In this design, indoor switchgear is enveloped in metal sheets, providing protection to both the devices and personnel. The enclosure typically features ventilation openings and doors or removable covers for component monitoring and inspection.

Metal Clad Switchgear: In indoor metal clad switchgear, individual components are housed within separate compartments, isolated from each other by metal partitions. These compartments are grounded for safety purposes, and the breaker compartment is often withdrawable, known as a "draw-out" design.

Advantages of Indoor Switchgear

Indoor switchgear, primarily used for voltages below 11kV, offers several advantages, making it suitable for various applications:

Enhanced Safety: Indoor switchgear is enclosed within metal enclosures, providing an additional layer of protection against electrical shock or electrocution. This safety feature is crucial for residential, industrial, and institutional settings, ensuring the well-being of personnel and equipment.

Greater Protection: Indoor switchgear offers superior protection against environmental contaminants such as dust and moisture. This level of protection is especially valuable in industrial settings with high levels of particulate matter or conductive dust from nearby machining operations.

Increased Reliability: Indoor switchgear is less susceptible to damage from extreme weather events, enhancing its reliability. The reduced exposure to power surges and current fluctuations can improve long-term system reliability, leading to fewer outages.

Lower Maintenance Costs: Indoor switchgear tends to have lower maintenance costs compared to outdoor switchgear. The controlled indoor environment reduces the risk of equipment damage, resulting in longer lifespans and reduced repair or replacement expenses.

Space Efficiency: Indoor switchgear requires less installation space than its outdoor counterpart, as there is no need for external shelters to protect against the elements. This space efficiency is advantageous in small facilities or densely populated urban areas, where land costs are high.

Moreover, in certain settings like office buildings or retail establishments, where aesthetics matter, indoor switchgear is often considered more visually appealing.

Disadvantages of Indoor Switchgear

Despite its numerous benefits, indoor switchgear has some downsides that electrical engineers and electricians should consider when designing power distribution systems:

Higher Initial Costs: Indoor switchgear typically incurs higher upfront costs compared to outdoor switchgear. However, it compensates for this with lower ongoing maintenance expenses, thanks to its resilience against environmental factors like rain and dust.

Limited Expansion: Expanding or modifying indoor switchgear after installation can be challenging, as the equipment is housed within a building. This may require significant investments in replacement parts or system reconfiguration, potentially increasing costs.

Conclusion

The concept of installing switchgear inside buildings has both advantages and drawbacks. While it may not be suitable for every application, indoor switchgear offers numerous benefits when used in specific settings. Whether the goal is to enhance safety, safeguard equipment against environmental factors, or reduce maintenance expenditures, opting for indoor switchgear can prove to be a wise choice across various applications.
