All You Need to Know About Heat Exchanger Tubes

by rohan 4 months ago in product review
Report Story


A heat exchanger is a device that transfers heat from one fluid to another or from two or more fluids. Such materials are separated by a wall so that they do not mix, even if they are nearby. Heat exchangers are crucial to the operation of a variety of systems and activities. The heat exchanger can be found in a hot water boiler or a freezer, for example. In the first case, energy is sent to the boiler, whereas in the second case, energy is transported away, keeping the freezer cool.

Heat exchangers come in a variety of shapes and sizes. Heat exchangers with double pipes have a simple form and are commonly employed in the industry. Repairs and designs are less expensive. On the contrary, they are inefficient and take up a lot of room. Modern manufacturers, on the other hand, use shell and tube or plate heat exchangers, which are more efficient.

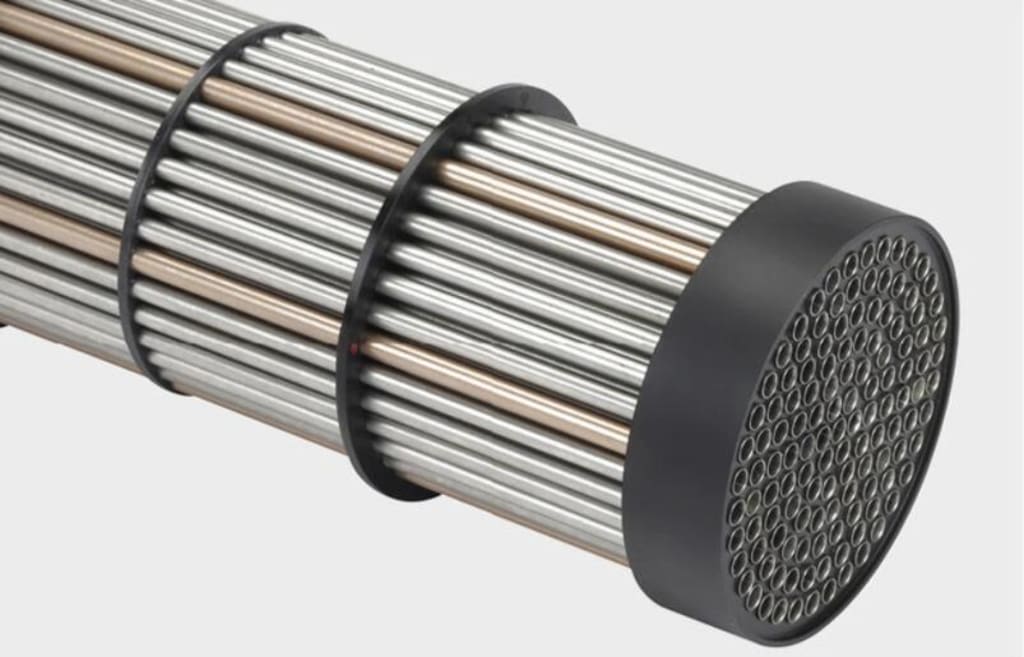

The heat exchanger is made up of multiple tubes. They come in a range of materials, including stainless steel, duplex stainless steel, nickel alloys, zirconium, and titanium, and are ideal for heat exchanger types, including heaters, evaporators, condensers, seawater coolers, and re-heaters.

Finned, plain, internal, or external heat exchanger tubes are available. Plain tubes are used in standard heat exchangers, whereas finned tubes have a large heat transfer surface. The duplex tube, which is mounted within the tube by drawing the tube out into the inner tube, is another form of a tube.

The diameter of the tubes ranges from 6 to 40 mm. The thickness is determined by the diameters of the construction materials. The tube's length ranges from 0.5 to 6 meters. They are arranged in either a square or an equilateral triangle pattern.

If the heat exchanger tube breaks, simply extend and rotate the tool to the tube's ends in the tube sheet holes to replace it.

Applications and Uses of Heat Exchangers

Heat Exchanger Tubes are utilized for a variety of applications in sectors such as chemical, hydrocarbon manufacture, oil refining, and aerospace.

Many sectors, including chemical, hydrocarbon production, oil refining, and aerospace, employ Stainless Steel 304 Heat Exchanger Tubes for diverse reasons such as heating or reheating, gas cooling, fluids, or air.

The heat exchanger tubes are available in two types –

1) Straight

2) U- bent

Straight tubes

The two ends of the tube are attached to the tube sheets. One fluid is directed to the tube, while the other is directed to the shell. They have incredibly high fouling properties. They are employed in areas where high temperatures are frequently crossed. Straight tubes may be simply washed to clean the heat exchanger.

U- Bent Tubes

A U-shaped tube is joined to a tube sheet and supported by tube baffles to form U–bent tubes. These are of exceptional grade. U-bent tubes can be customized to the customer's specifications. Such tubes are cut with various leg lengths, their ends are deburred, and the bores are adequately cleansed with dry air.

There are various aspects to consider when producing heat exchanger tubes:

  • Dimensional tolerances for diameter
  • Eccentricity
  • Wall thickness
  • Length
  • Mechanical properties
  • Corrosion resistance
  • Surface finish

The heat exchanger tubes need to be inspected. This is critical since their surface is the primary source of heat transfer and any corrosion can have a significant impact on their performance.

One of the most effective methods for examining tubes is the distant field electromagnetic technique. When compared to other firms' basic inspection methods, such as visual inspection, magnetic particles, and dye penetrant testing, it is a highly developed test method.
