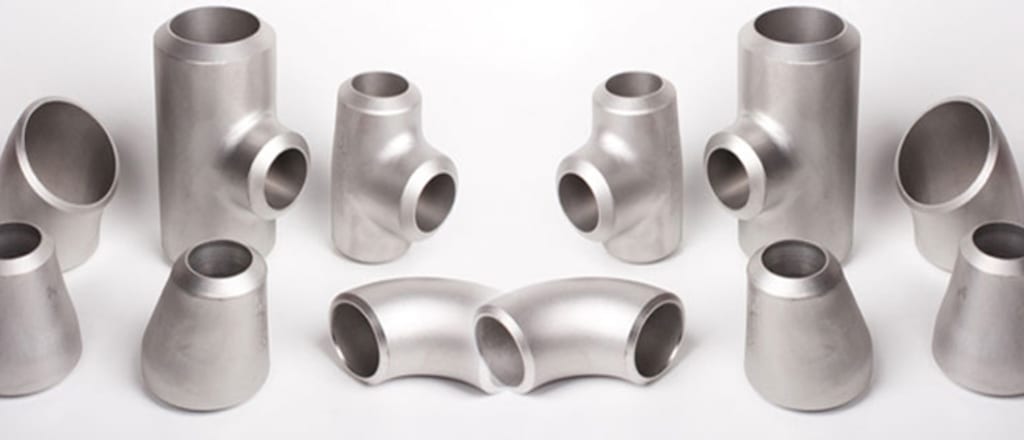

Buttweld pipe fittings

Buttweld Pipe Fittings

A buttweld pipe fitting is designed to be welded on-site and allows for changes in direction, pipe diameter, branching, and end. This pipe fitting then improves a system for transporting liquids (oil, gas, steam, chemicals) safely and efficiently over short or long distances.

Butt welds come in a variety of shapes, sizes, and dimensions. Butt-welded When compared to threaded and socket weld fittings, pipe fittings have numerous advantages. Butt weld fittings are available in sizes ranging from 12" to 72" nominal size, whereas the latter is only available up to 4-inch nominal size.

Long radius elbows, crosses, unions, nipples, hex plugs, concentric reducers, eccentric reducers, and Tees, reducing tee equal tee, reducing cross, equal cross, reducing cross, equal cross, reducing cross, equal cross, and so on are examples of Buttweld pipe fittings.

In industrial pipe systems, buttweld fittings are used to change direction, branch off, and mechanically connect equipment to the system. Butt welds are available in many different shapes, sizes, and proportions. Butte welded Pipe fittings have numerous advantages over threaded and socket weld fittings.

Types of Butt Weld Fittings:

Butt Weld Long Radius 90 Degree Elbow: A butt-weld long radius 90-degree elbow is used for a 90-degree turn on piping in a butt weld piping system. Long radius elbows are preferred because they have a low-pressure drop.

Butt Weld Short Radius 90 Degree Elbow: Buttweld short radius 90-degree elbows are preferable when space is limited. If piping arrangements are required, they can be reduced to a lesser extent.

Butt Weld Long Radius 45 Degree Elbow: A butt-weld long radius 45-degree elbow is used for 45-degree turn on piping in a butt weld piping system. Long radius elbows are preferred because they have a low-pressure drop.

Butt Weld Reducing Long Radius Elbow: When there is a limited amount of space they are used sparingly. Typically, a straight elbow with a butt weld reducer is used.

Straight Butt Weld Crosses: Except where space is limited, such as in maritime piping or refurbishment work. Tees rather than crosses are preferred for economy, availability and to reduce the number of components in inventory.

Reducing Crosses for Butt Weld for the economy, to reduce the number of pieces in inventory. It is preferable to use tees rather than crosses unless space is limited in maritime piping or refurbishment work.

Straight Butt Weld Tee: Butt weld straight tees are used for branch connections that are the same size as the header. This is one of the most commonly used butt welding fittings.

Butt Weld Reducing Tee: Butt weld reduction tees are used for branch connections that are smaller than the header. This is one of the most commonly used butt welding fittings.

The Butt Weld Concentric Reducer is the most common type of vertical piping reducer. Placing them in horizontal piping reduces the elevation of the piping which can be dangerous.

Butt Weld Eccentric Reducers: These are commonly used in horizontal pipework in place of concentric reducers because they leave the pipe's bottom unaltered.

Butt Weld Caps: These are used to close the pipe ends on pipe racks. They're also used at the bottom of condensate drip legs.

Butt Weld Short Radius Returns: 180-degree returns are used in heating coils, tank vents, and other structures. The least amount of pressure decrease occurs with long radius returns.

Lap Joint Stub End: They are used when piping is made of costly materials, such as stainless steel. This stub end has a slipping thick flange. The flange can be made of less expensive material, such as carbon steel.

For more details visit- C276 Buttweld Pipe Fittings
